Old 03-09-2014, 04:44 PM   #1
L79racer
Member

L79racer's Avatar

Join Date: Jan 2005
Location: North Massapequa, NY
Posts: 218
Likes: 0
Liked 0 Times in 0 Posts
Default Mid year corvette cage ?

Getting a cage put in my 66 convertible. I would like to see some pictures of some cages. It is a stock chassis and stock seats. If anyone can post a few pictures it would be a great help. Thanks in advance.

Vinny
L79racer is offline   Reply With Quote
Old 03-09-2014, 04:58 PM   #2
FireSale
VIP Member

FireSale's Avatar

Join Date: Feb 2014
Location: Lakewood Washington
Posts: 1,407
Likes: 29
Liked 237 Times in 126 Posts
Default Re: Mid year corvette cage ?

The pics on pages two and three might help. I'll add more to this post if I find them.

Caging A Corvette (from another forum)

Another from Corvette forums

Here's a 76 from YB This is a newer car, but the build is very detailed.

Dale
__________________
Dale Shearon
68 Mustang 6394

Last edited by FireSale; 03-09-2014 at 05:07 PM.
FireSale is offline   Reply With Quote
Old 03-09-2014, 05:40 PM   #3
Jeff Jewell
Member

Jeff Jewell's Avatar

Join Date: Jun 2002
Location: Bangor, PA
Posts: 182
Likes: 41
Liked 171 Times in 36 Posts
Default Re: Mid year corvette cage ?

Quote:
Originally Posted by L79racer View Post
Getting a cage put in my 66 convertible. I would like to see some pictures of some cages. It is a stock chassis and stock seats. If anyone can post a few pictures it would be a great help. Thanks in advance.

Vinny
I'll have to see if I have any pics laying around of the cages in our cars. To get the angle of the rear bars correct, you'll need to notch the rear deck. With tubs, there is no room to put in bars angled in from the main hoop to the center floor of the car. You might have more room with a stock chassis. A properly done 6 point cage in one of these cars will cert to 8.50.

I recommend speaking with Tom Goldman, who is on this board. He has crawled all around our cars over the years and knows what needs to be done to make it right.

Hope this helps.
Jeff Jewell is offline   Reply With Quote
Old 03-09-2014, 05:56 PM   #4
L79racer
Member

L79racer's Avatar

Join Date: Jan 2005
Location: North Massapequa, NY
Posts: 218
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Mid year corvette cage ?

Thanks for replying guys. I seen most of the cages on line as Dale posted. I installed a cage in my 80 with race seats. In the 80 I welded the main hoop down onto the rear cross member up against the inside of the kick up of the rear section of chassis. In the 66 with the stock seats there doesnt seem to be enough room. I was thinking of placing the main hoop onto the kick up but then the rear bars are further back which would mean making the notch in the rear deck much longer. I will just be using the hard top only so I wont have to worry about the soft top interfering. I'll talk it over with the guy whose going to install the cage for me.
Jeff I have a few pictures of your Vette but I cant see the main hoop set points.
L79racer is offline   Reply With Quote
Old 03-09-2014, 06:41 PM   #5
Jeff Jewell
Member

Jeff Jewell's Avatar

Join Date: Jun 2002
Location: Bangor, PA
Posts: 182
Likes: 41
Liked 171 Times in 36 Posts
Default Re: Mid year corvette cage ?

The main hoop is welded to the frame, about even with the crossmember that goes across. My drivers seat is actually under the main hoop and the cross bar that the head rest and seat belts mount to bends back behind the seat. It's all a tight fit...
Jeff Jewell is offline   Reply With Quote
Old 03-09-2014, 06:58 PM   #6
L79racer
Member

L79racer's Avatar

Join Date: Jan 2005
Location: North Massapequa, NY
Posts: 218
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Mid year corvette cage ?

Jeff if you get a chance can you send me a picture of your main hoop and rear deck? Did you remove the lever and cables to pop the rear deck locks?
L79racer is offline   Reply With Quote
Old 03-10-2014, 08:32 PM   #7
vetteboy
Junior Member

Join Date: Mar 2011
Location: West Olive, MI
Posts: 35
Likes: 7
Liked 2 Times in 2 Posts
Default Re: Mid year corvette cage ?

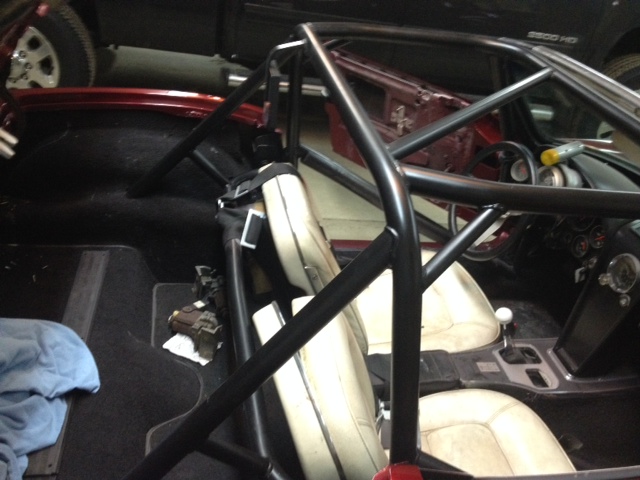

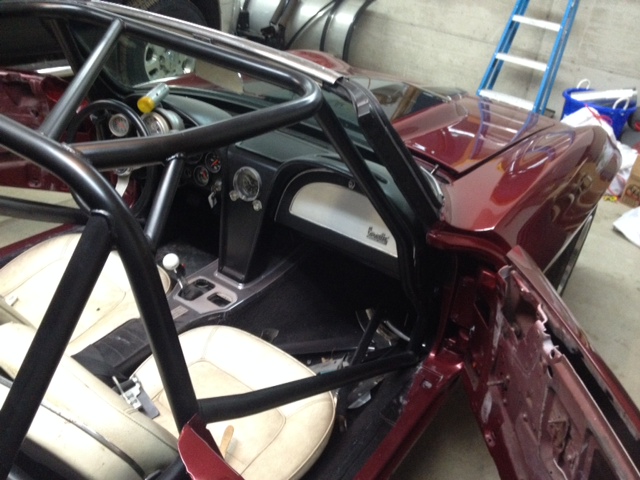

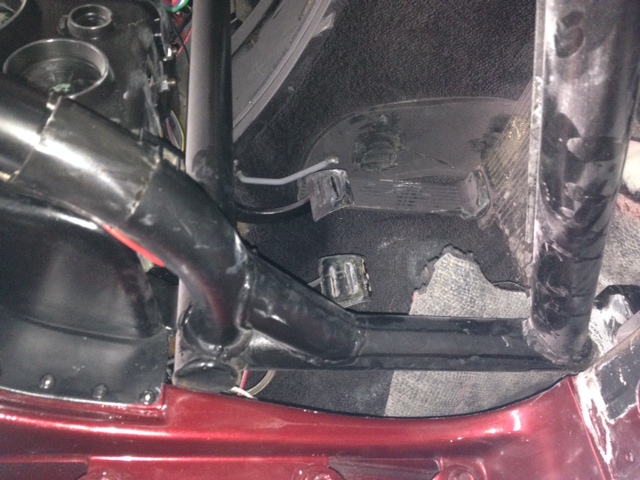

Here are a couple of pictures of my car. I just got the car back from being painted. I didn't have to modify any interior parts other than the deck lid. The hard top fits but tight. If you are a tall or bigger guy put a swing out bar in it.
Attached Thumbnails
Click image for larger version

Name:	download.jpg
Views:	312
Size:	112.6 KB
ID:	23044   Click image for larger version

Name:	download_002.jpg
Views:	293
Size:	130.3 KB
ID:	23045   Click image for larger version

Name:	download_005.jpg
Views:	292
Size:	132.5 KB
ID:	23046

vetteboy is offline   Reply With Quote
Old 03-10-2014, 09:16 PM   #8
L79racer
Member

L79racer's Avatar

Join Date: Jan 2005
Location: North Massapequa, NY
Posts: 218
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Mid year corvette cage ?

Quote:
Originally Posted by vetteboy View Post
Here are a couple of pictures of my car. I just got the car back from being painted. I didn't have to modify any interior parts other than the deck lid. The hard top fits but tight. If you are a tall or bigger guy put a swing out bar in it.
Glad you posted. You sent me a couple of pictures of you vette before it was painted but I couldnt remember what site you were on. What did you weld the main hoop too. It looked like it went into the corner of the chassis where that triangle brace is from the side rail to the rear crossmember is. I like the fit of our cage. Its pretty much what Im looking for. If you have a few more picture please send them. What size hoosier slick are you running. I Have a 28x11.5 et street on mine now to see the fitment. Its on a 7" centerline with a 4 7/8 back space. It just about fits from chassis to quarter panel.

L79racer is offline   Reply With Quote
Old 03-10-2014, 11:07 PM   #9
vetteboy
Junior Member

Join Date: Mar 2011
Location: West Olive, MI
Posts: 35
Likes: 7
Liked 2 Times in 2 Posts
Default Re: Mid year corvette cage ?

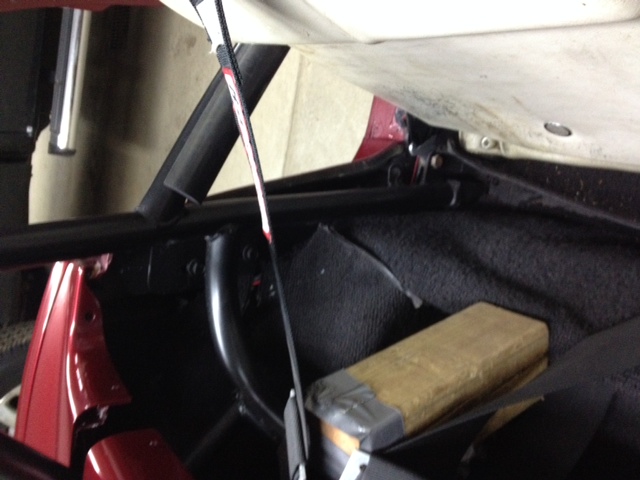

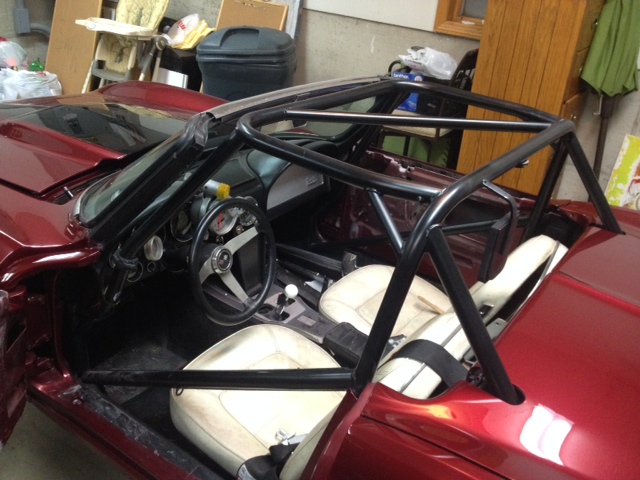

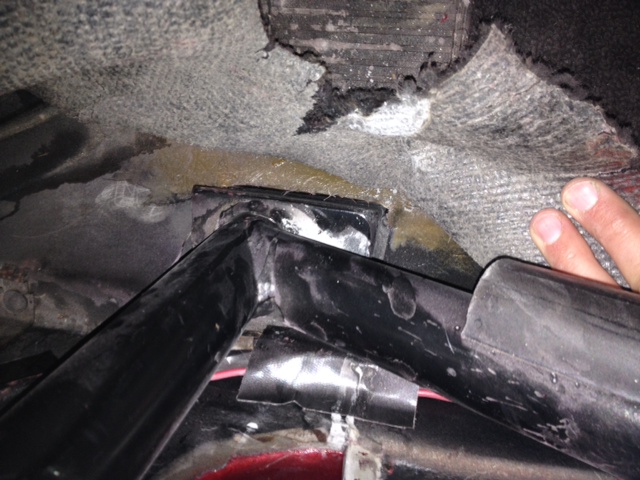

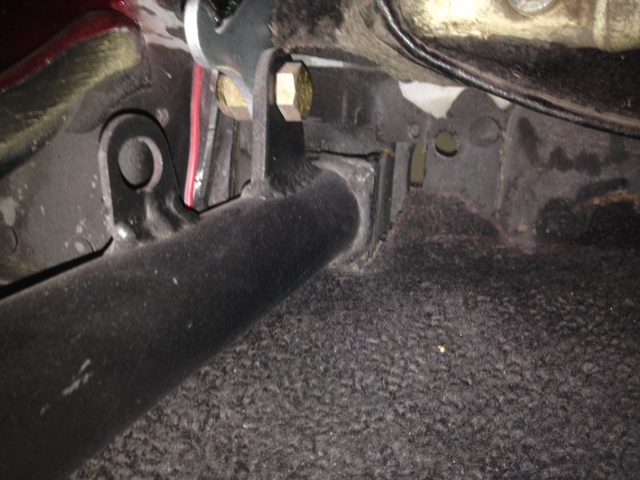

The car was in black primer when I sent you those pictures. The car looks awesome now. I run 29.5 x 9 M/T slick on a M/T wheel 4.5 back spacing. I made my own perch/pads off the frame so that the cage could be welded on a flat surface. I had the guy doing my cage tell me where he want to connect to the frame and then I took the body off the frame and made my perches/pads. If you need any more pictures or have any more question send me a PM. Brett
Attached Thumbnails
Click image for larger version

Name:	photo 1(1).JPG
Views:	276
Size:	126.1 KB
ID:	23050   Click image for larger version

Name:	photo 2.JPG
Views:	284
Size:	134.3 KB
ID:	23051   Click image for larger version

Name:	photo 3.JPG
Views:	273
Size:	136.2 KB
ID:	23052

Click image for larger version

Name:	photo 4.JPG
Views:	271
Size:	97.7 KB
ID:	23053
vetteboy is offline   Reply With Quote
Old 06-01-2014, 08:18 AM   #10
L79racer
Member

L79racer's Avatar

Join Date: Jan 2005
Location: North Massapequa, NY
Posts: 218
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Mid year corvette cage ?

Just wanted to update this post. I had the cage done by Joe at Thriftway-Auto. He is a member here also and I think his screen name is Badnova.



L79racer is offline   Reply With Quote
