#111 |
Member
Join Date: Jul 2012
Location: Phoenix, Az
Posts: 320
Likes: 17
Liked 116 Times in 40 Posts
|
![]()
Did they deck the block ? If not that could be the reason.
__________________
U/SA 79 Mustang |
![]() |
![]() |
![]() |
#112 | |
VIP Member
Join Date: Feb 2003
Location: Glendale, Arizona
Posts: 2,992
Likes: 693
Liked 1,458 Times in 544 Posts
|
![]() Quote:
They are of a lightweight design, light and have scalloped and windowed mains. For a full race engine, you can fill the block and used a girdle, or sleeve to a 307 bore size, a 1968 thru 1971 high nickel block. |
|
![]() |
![]() |
![]() |
#113 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()
Yes block was filled to bottom of water pump holes. Didn't know we could run a stud girdle. Ill look into that. Block was decked. We actually had to cut .034 to get zero deck. I have a 71 350 block but being a budget build I didn't want the expense of sleeving down to 307 bore
|
![]() |
![]() |
![]() |
#114 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()

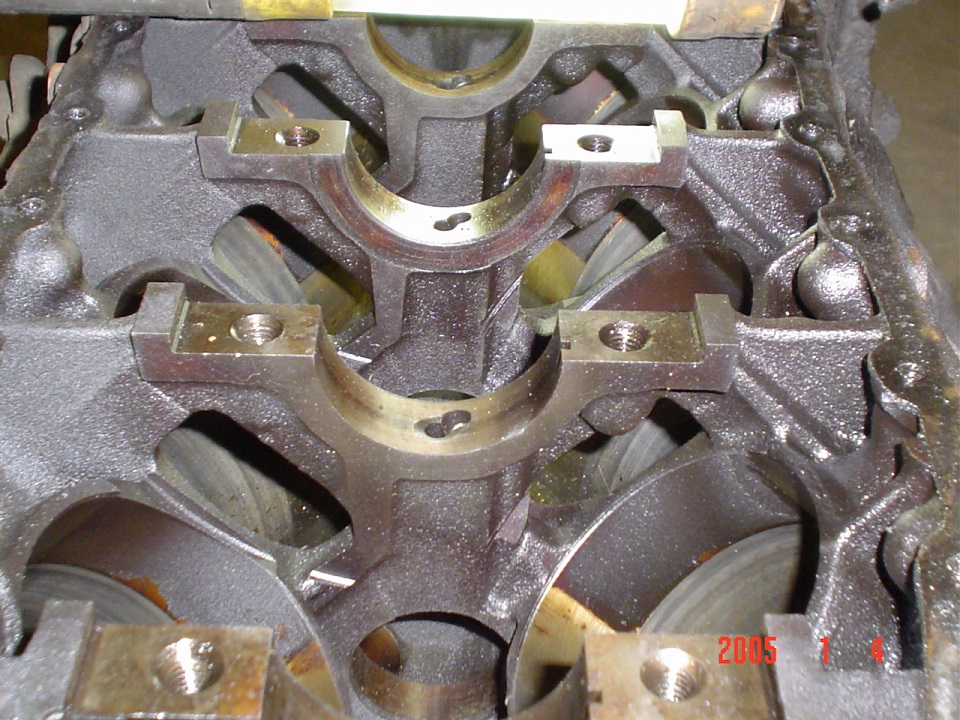

Slow progress but progress. Cleaned up oil passage on main cap. Removed burr on hole entrance and the port to block had a large restriction dog leg in it. So I straightened dog leg in port. The oil hole in block was about .060 smaller then oil hole in cap so I matched those. Drilled and tapped passeges in main caps to run oil restrictors.
![]() Last edited by Jeff Stout; 05-25-2017 at 02:36 PM. Reason: more |
![]() |
![]() |
![]() |
#115 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()
Little update. Went on Ebay shopping spree. Clevite bearings, rear seal to replace rope seal , and HV oil pump $149.48 Total $5530.98 No pics as Im waiting on rings to complete short block. Then front end rebuild and valvetrain purchase.
|
![]() |
![]() |
![]() |
#116 |
Senior Member
Join Date: May 2010
Location: Raleigh NC
Posts: 629
Likes: 27
Liked 243 Times in 73 Posts
|
![]()
Kinda thought that is the reason for honing with a torque plate, to make sure the cylinder is round when the head is bolted on.
__________________
Mike Moller NHRA 203 Q-R-T/SA |
![]() |
![]() |
![]() |
#117 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()
Some updates. Purchased beehive springs with retainers and keepers $291. Heads are 1cc over minimum, runner were 3-5 cc's less then maximum. Basic 3 angle valve job. The compression thickness total will be .004 more then allowed. Motor is no even close to being illegal.
![]() New total $5821.98 Last edited by Jeff Stout; 07-29-2017 at 09:37 PM. Reason: more |
![]() |
![]() |
![]() |
#118 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()
I was concerned with stock 12 bolt yoke and purchased a Strange yoke and u-bolts along with 1 Carrier main cap and reinforced rear end cover $377
New Total of $6198.98 Last edited by Jeff Stout; 07-29-2017 at 09:38 PM. Reason: more |
![]() |
![]() |
![]() |
#119 |
Senior Member
Join Date: Jun 2012
Posts: 638
Likes: 539
Liked 916 Times in 206 Posts
|
![]()
Jeff, your previous total was 5500.00 and change. New total 4400.00
and change. This is the same accounting I use when explaining Race Car expense to my wife. J.R. |
![]() |
![]() |
Liked |
![]() |
#120 |
VIP Member
Join Date: Dec 2001
Location: phoenix
Posts: 1,430
Likes: 54
Liked 675 Times in 267 Posts
|
![]()
LOL. My significant other doesn't even know about the first dollar spent on this project. I type this stuff when I'm by myself. Thanks for catching it. Now updated. Also I need to get my pics on Flickr or if someone has a better place to host pictures.
|
![]() |
![]() |
![]() |
|
|
