Old 10-04-2014, 12:25 PM   #41
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Chris, you are welcome. This is an enjoyable build. I plan to carry the complete process all the way to a Division 4 super stock race.

More soon
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-05-2014, 06:24 PM   #42
tj310
Member

Join Date: Sep 2009
Location: Dresden On. Canada
Posts: 460
Likes: 0
Liked 0 Times in 0 Posts
Default Re: Woodfin's SS GT/TB construction series

Like ---Trevor
tj310 is offline   Reply With Quote
Old 10-10-2014, 08:48 PM   #43
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Friday evening updates;

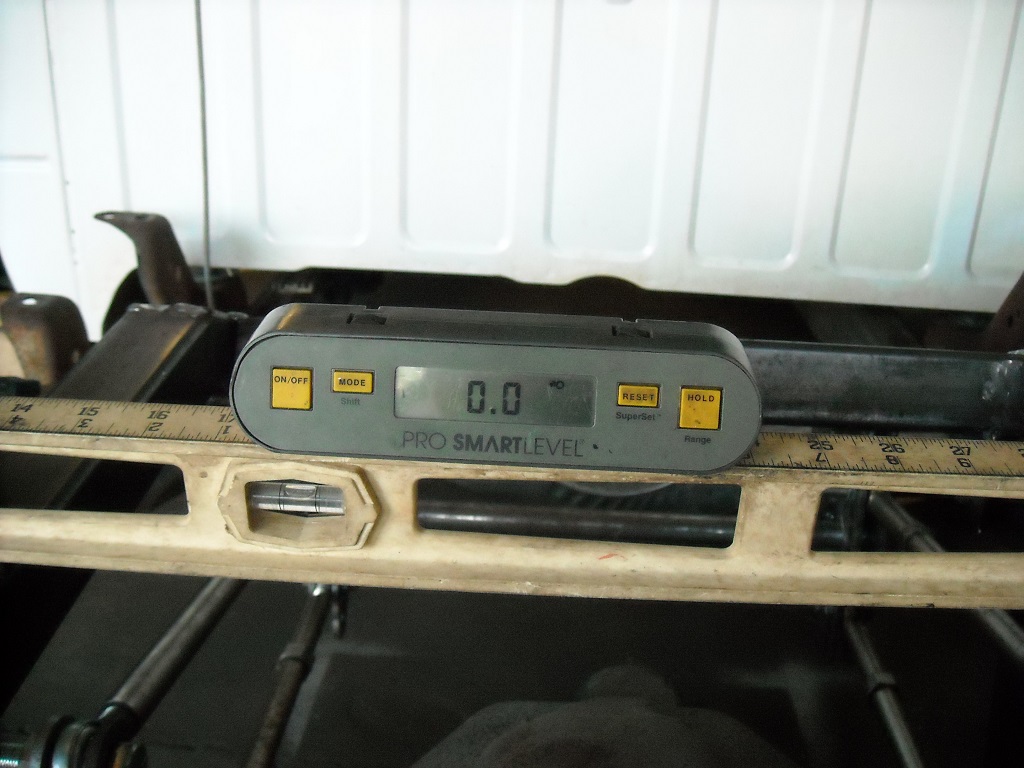

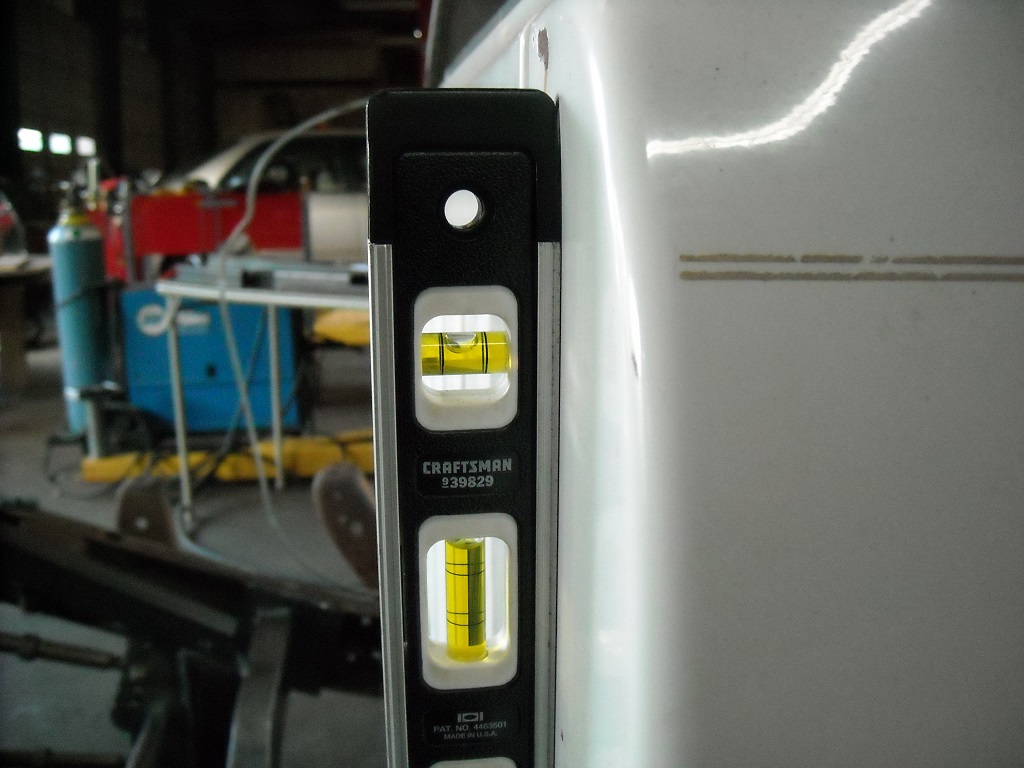

these photos show the continued effort to keep the build level and plumb. Also, the chassis tables are moved away and stored until the completed package is ready for final adjustments.
Attached Thumbnails
Click image for larger version

Name:	DSCN0015.JPG
Views:	392
Size:	318.0 KB
ID:	26141   Click image for larger version

Name:	DSCN0016.JPG
Views:	397
Size:	328.9 KB
ID:	26142
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-10-2014, 08:59 PM   #44
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

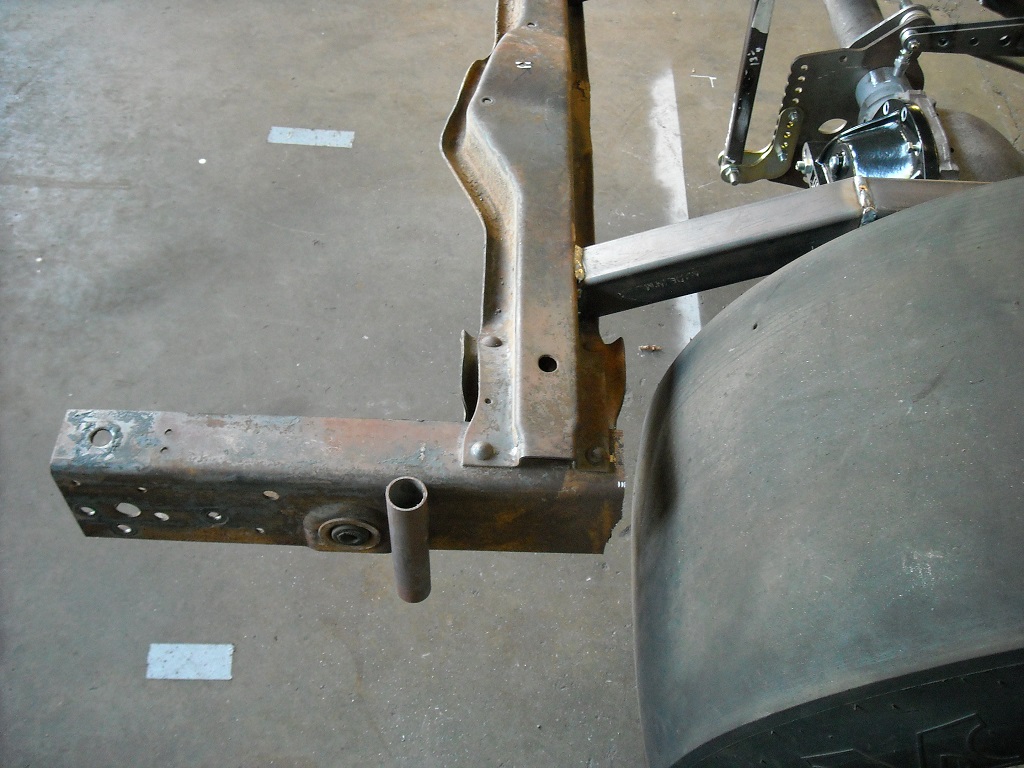

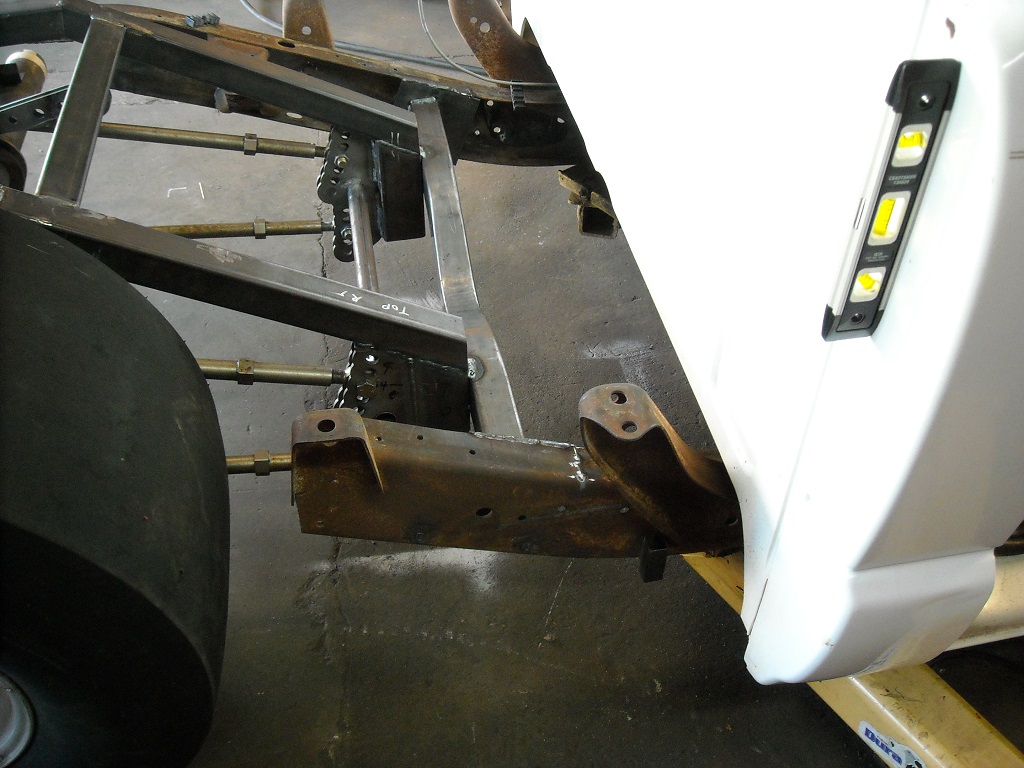

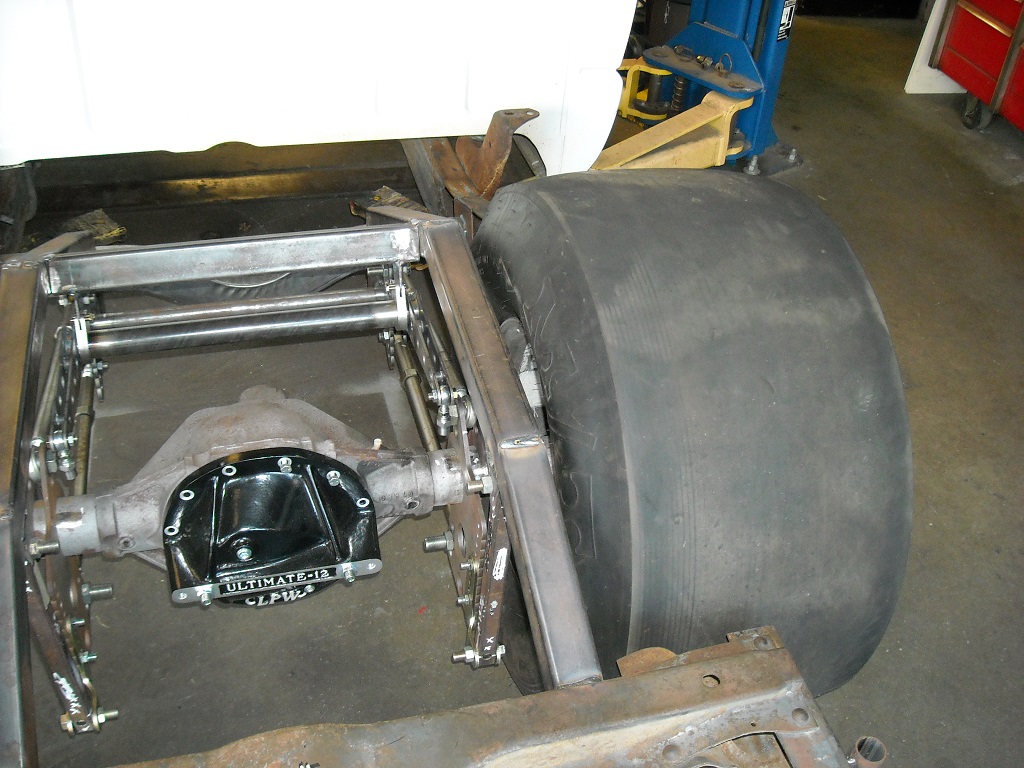

these photos show the right side factory frame cut away. Also note the factory bed mounts are still in place.

One of the very critical dimensions was locating the forward four link brackets and crossmember. I am happy with the outcome.

The remaining factory frame pieces will be triangulated braced with pieces of tubing.
Attached Thumbnails
Click image for larger version

Name:	DSCN0017.JPG
Views:	600
Size:	351.6 KB
ID:	26145   Click image for larger version

Name:	DSCN0018.JPG
Views:	571
Size:	366.3 KB
ID:	26146
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-10-2014, 09:04 PM   #45
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

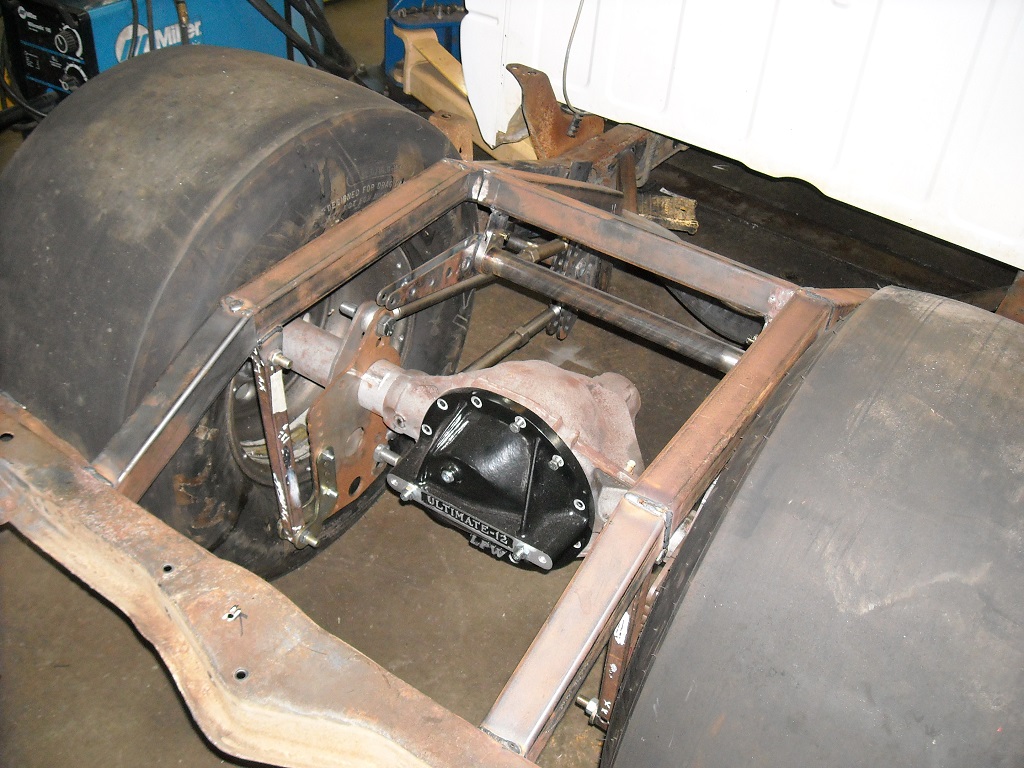

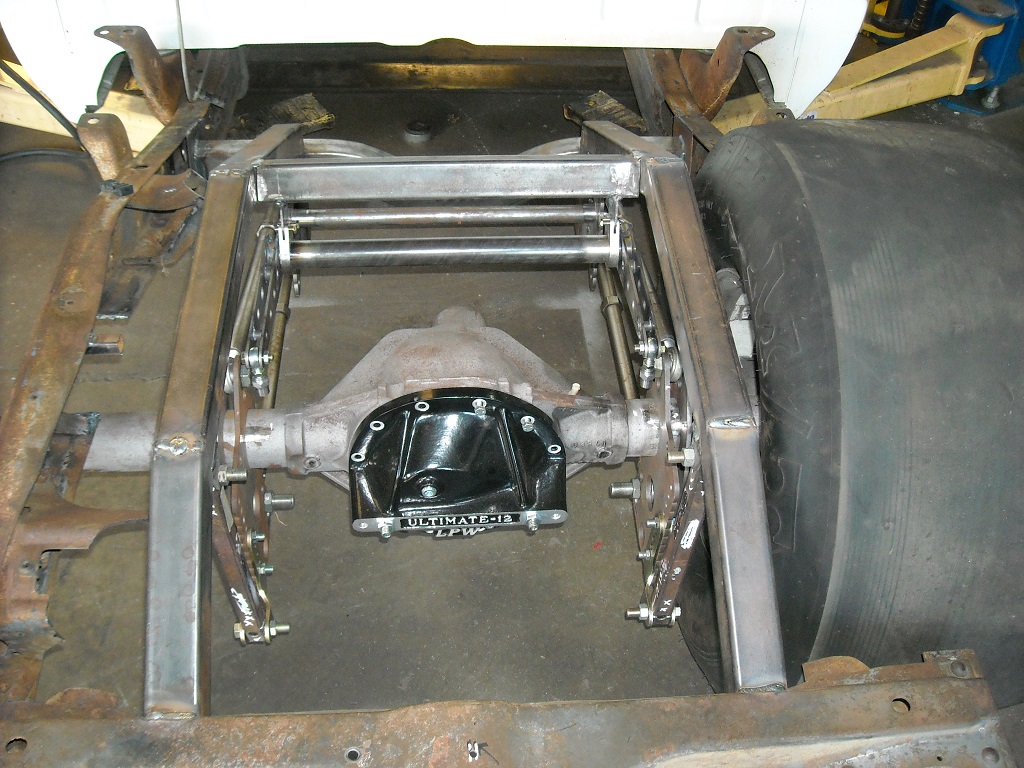

It is beginning to show the plan coming together. Lot's of measure, check, measure, check, measure, check.

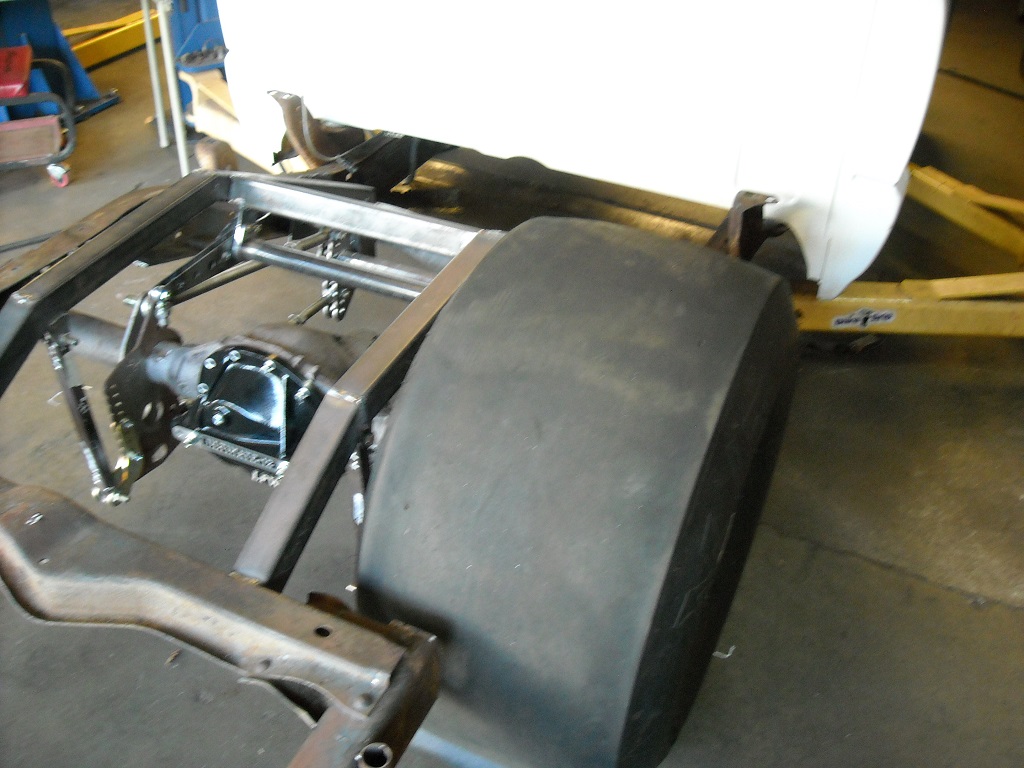

Check tire tucked in nicely. The outside of 32 x 14 tire lines up with the front tire outside sidewall.

The new frame is 8 1/2" inboard of the original frame. Outside new frame to outside new frame is 23 1/2"
Attached Thumbnails
Click image for larger version

Name:	DSCN0020.JPG
Views:	535
Size:	391.8 KB
ID:	26147   Click image for larger version

Name:	DSCN0021.JPG
Views:	577
Size:	426.2 KB
ID:	26148
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-10-2014, 09:08 PM   #46
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

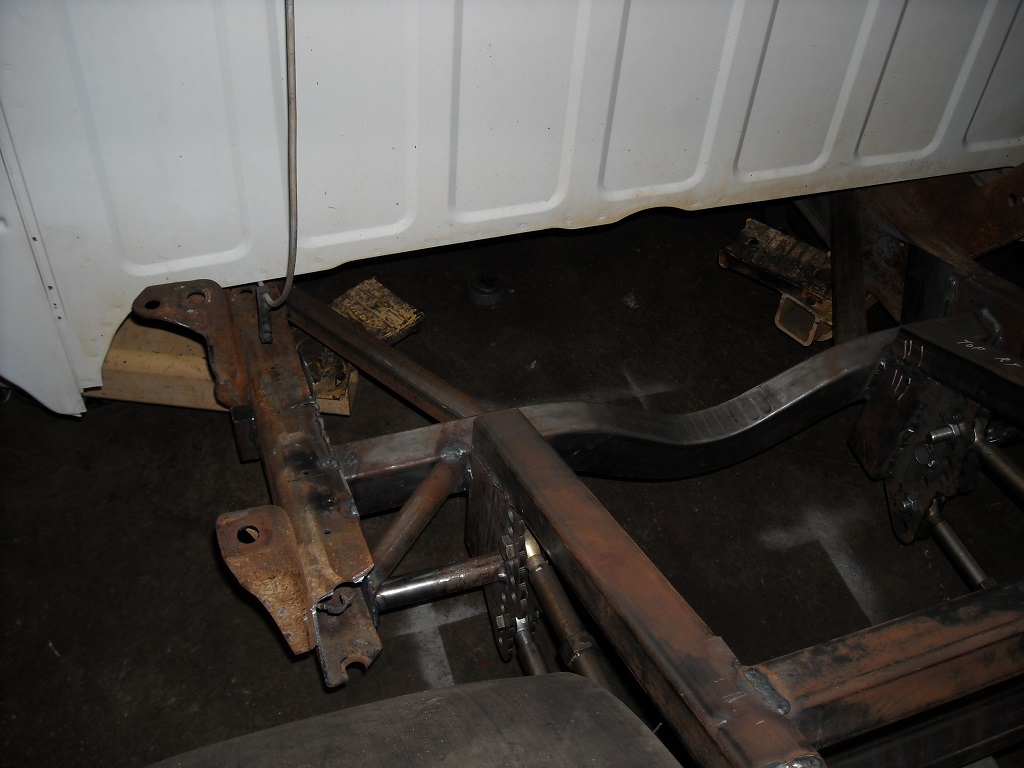

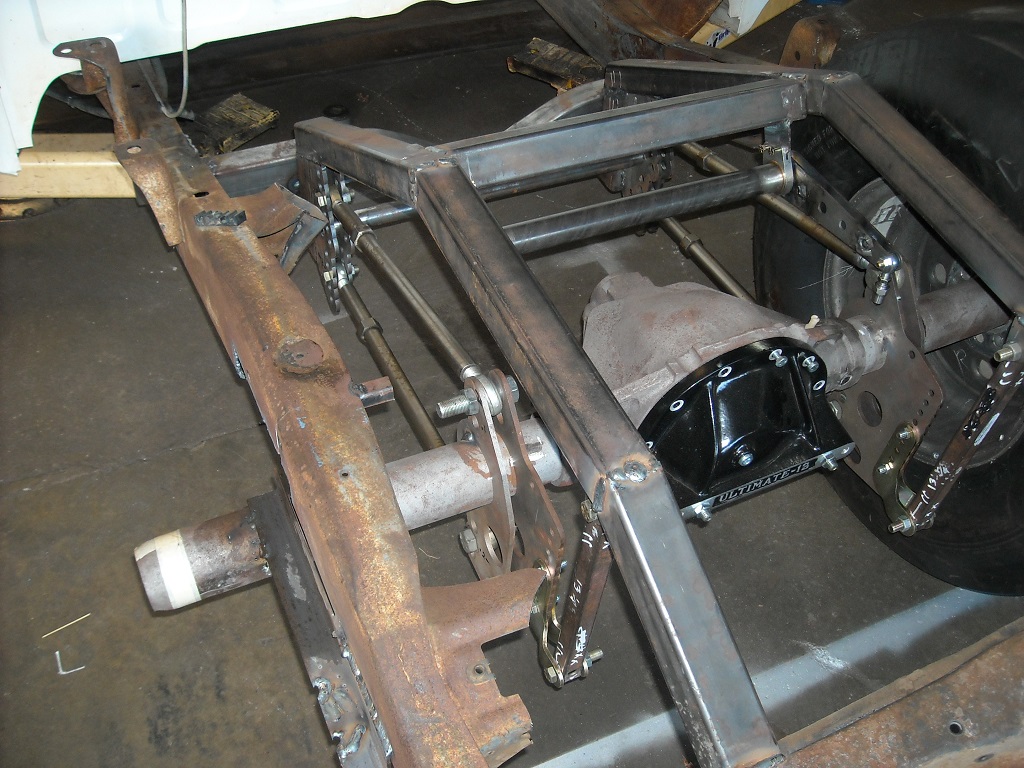

More photos of factory frame remaining on left side.Anti-roll bar roughed in, shock set up bars at ride height.
Attached Thumbnails
Click image for larger version

Name:	DSCN0023.JPG
Views:	526
Size:	404.3 KB
ID:	26149   Click image for larger version

Name:	DSCN0022.JPG
Views:	565
Size:	413.8 KB
ID:	26150   Click image for larger version

Name:	DSCN0024.JPG
Views:	569
Size:	339.9 KB
ID:	26151

__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-10-2014, 09:20 PM   #47
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

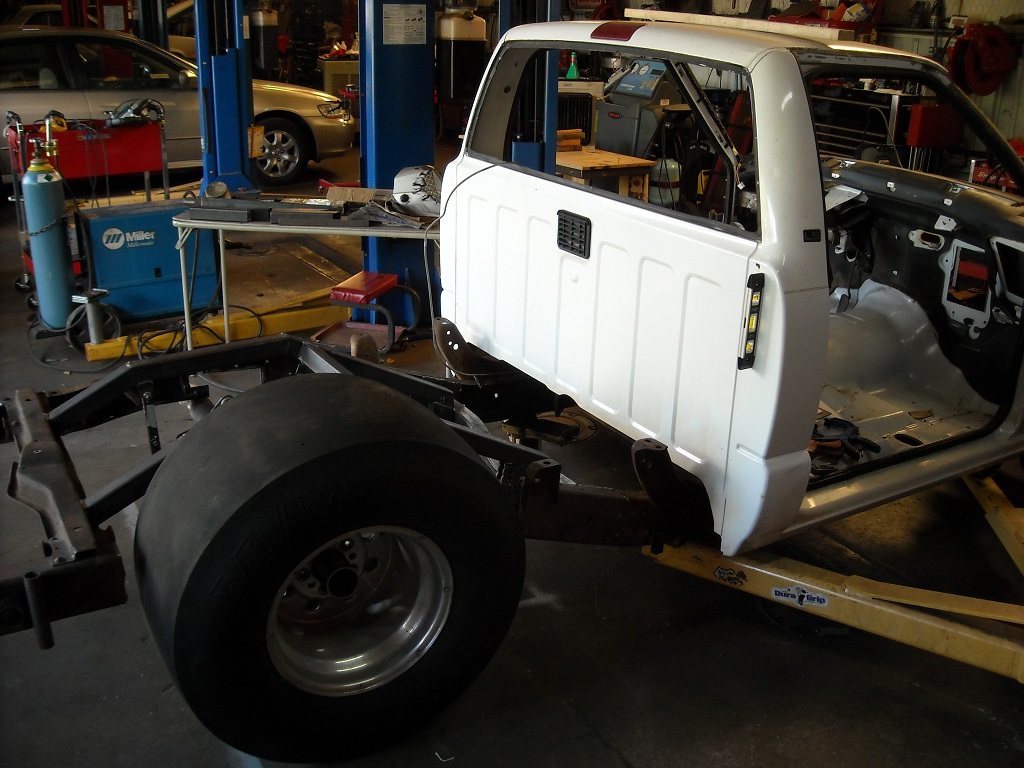

The short wheel base is becoming obvious.
Attached Thumbnails
Click image for larger version

Name:	DSCN0019.JPG
Views:	501
Size:	360.0 KB
ID:	26152
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-13-2014, 05:29 PM   #48
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Four other race cars have called this their home away from home. I look forward with excitement to the first hauling of the Super 10.
Attached Thumbnails
Click image for larger version

Name:	DSCN0025.JPG
Views:	375
Size:	443.6 KB
ID:	26182
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-13-2014, 05:44 PM   #49
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

Columbus Day brought good progress.

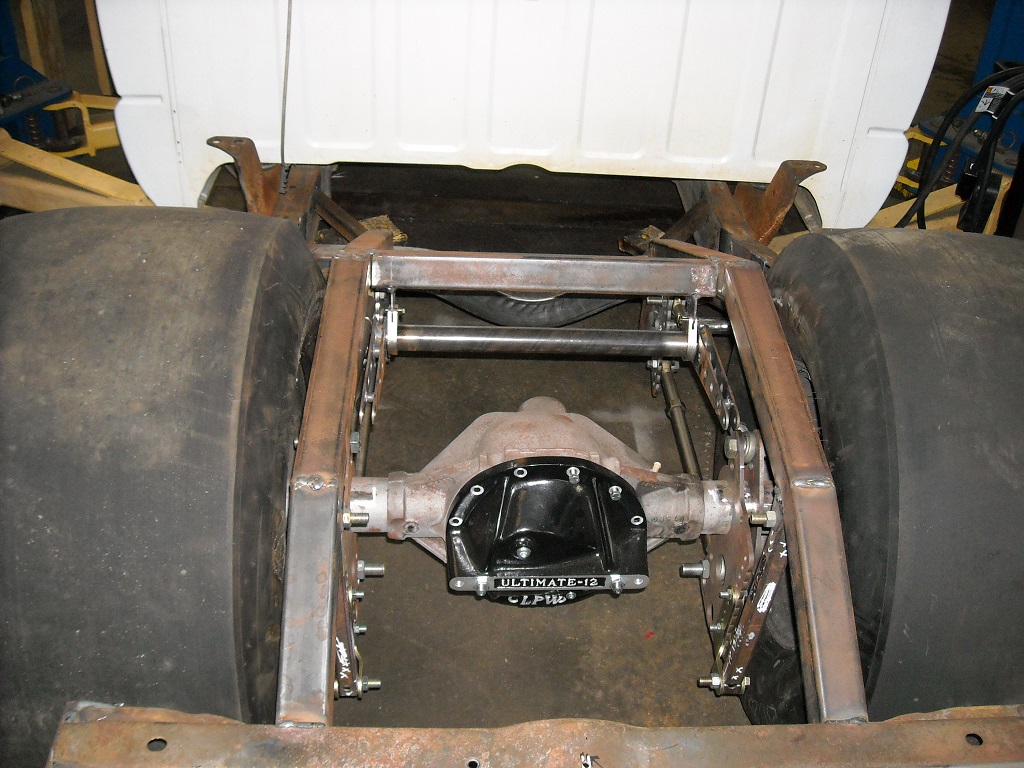

The wheels are hanging on the axle tubes, no axles, housing tubes are still oversize length. When finished there will be about 1" between side wall and frame.

This week Monte [Mr Sheet Metal] of Team Woodfin will help me lay out the preliminary cuts for rear tubs. Then the bed can go on for a full cut and tub design.

One hurdle ahead, how to modify the bed floor for rearward roll bar struts. Monte will have a plan soon.

Also note triangulated bars frame to four link brackets
Attached Thumbnails
Click image for larger version

Name:	DSCN0026.JPG
Views:	535
Size:	397.7 KB
ID:	26183   Click image for larger version

Name:	DSCN0027.JPG
Views:	551
Size:	293.6 KB
ID:	26184
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
Old 10-13-2014, 05:53 PM   #50
Dragsinger
VIP Member

Join Date: Jul 2008
Location: Liberty City [East Texas]
Posts: 1,760
Likes: 5
Liked 99 Times in 60 Posts
Default Re: Woodfin's SS GT/TB construction series

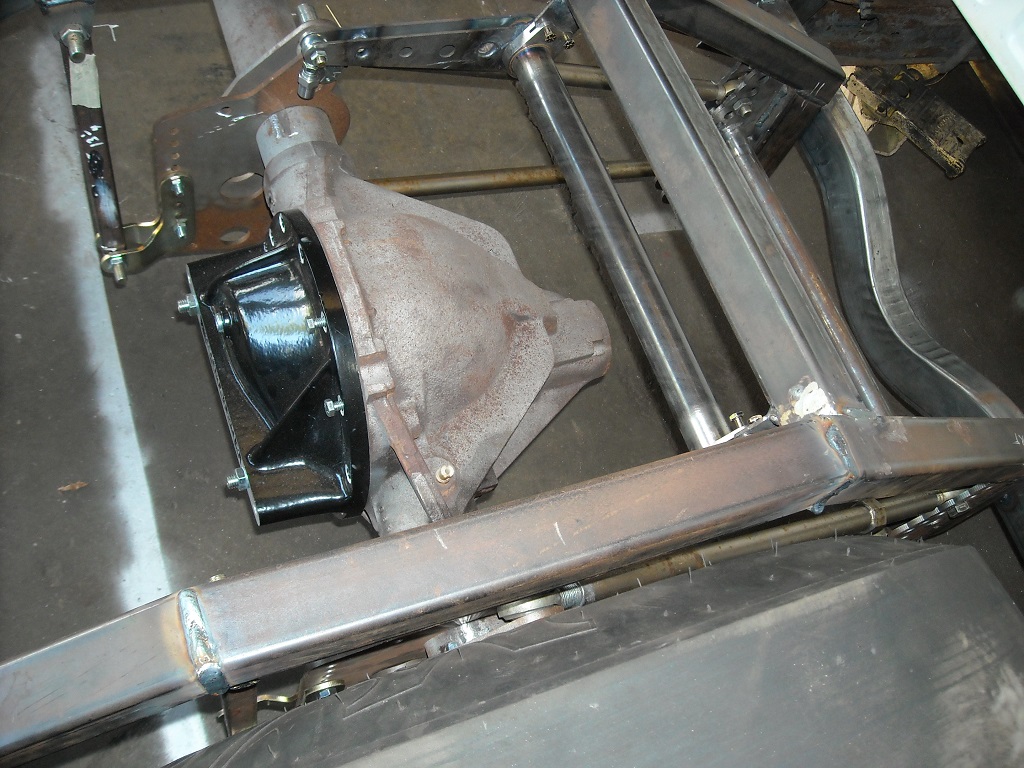

It's a funny thing about surface rust. The camera greatly exaggerates it, the tubing is much cleaner than the photos indicate. We do have times of high humidity in East Texas. That combined with handling produces a light surface rust.

When all welding and fitting is finished the back section will be sandblasted, primed, and painted.

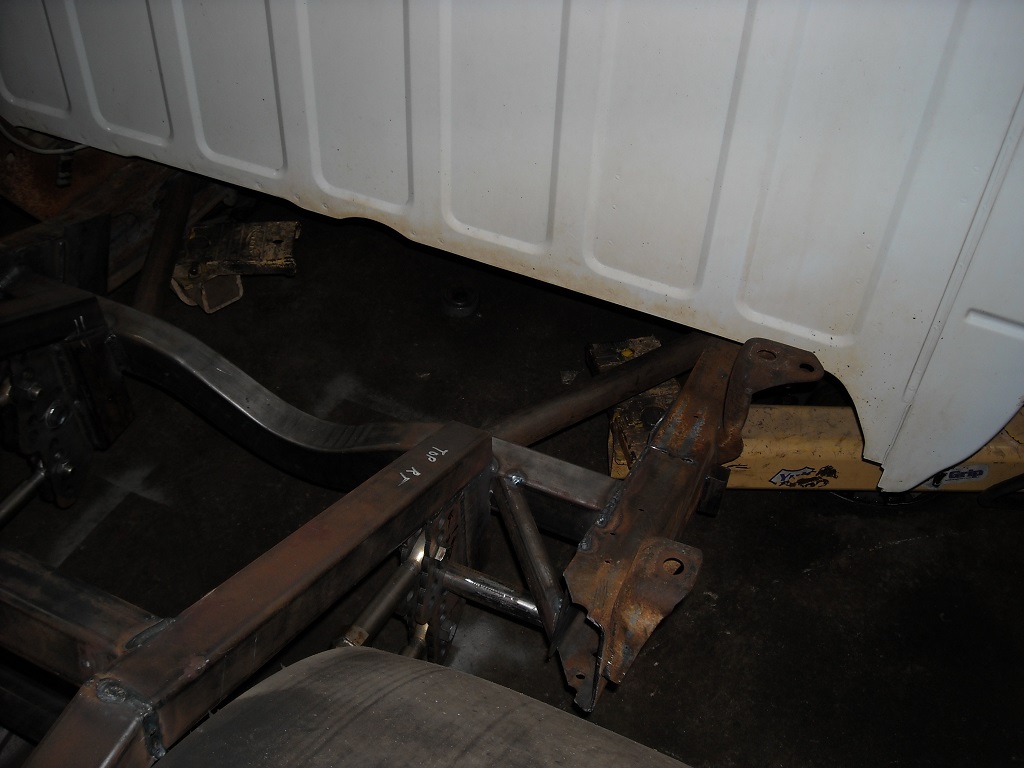

And another look at forward frame bracing
Attached Thumbnails
Click image for larger version

Name:	DSCN0028.JPG
Views:	480
Size:	276.6 KB
ID:	26185   Click image for larger version

Name:	DSCN0029.JPG
Views:	509
Size:	405.7 KB
ID:	26186
__________________
Larry Woodfin 471W
Dragsinger is offline   Reply With Quote
