Rear disc brakes for 5/8 studs

ken robinson · 01-01-2015, 03:21 PM

Looking at the strange web sight it doesn't state wheel stud hole dia. 1/2" or 5/8" of there disc hat for gm 12 bolt . Aerospace sales both 1/2 or 5/8 . Wilwood looks like only in 1/2 holes ? M/W is a yes . Anybody got any info ?

Patric Fox · 01-01-2015, 05:48 PM

I had to drill out my Wilwood hats for the 5/8 studs for a Dana 60. I used a Unibit step drill bit.

Dragsinger · 01-01-2015, 06:15 PM

Ken, all strange rotors are for the 5/8" studs. Strange has a sleeve to adapt to 1/2" if needed.

On the Strange web site note all the brake photos show with studs and nuts. If you scan the site for stud options you will set the 1/2" stud kits with "sleeves"

I have a Strange brake kit for the Super 10 build with 5/8" studs. I installed a symmetrical end on the 12 bolt housing.

FED 387 · 01-01-2015, 06:39 PM

put the 5/8 in you will never break a stud in a Stocker or LOW HP SS-- got access to a machine shop enlarge the hats to 5/8 inch-- problem solved

GTX JOHN · 01-01-2015, 07:56 PM

X2.........I have broken 1/2 on HEAVY Stocker and
disaster results ( Especially to the Tree )

MAURICE BLENDHEIM · 01-01-2015, 08:05 PM

Quote:

Originally Posted by patric fox

i had to drill out my wilwood hats for the 5/8 studs for a dana 60. I used a unibit step drill bit.

x2

FireSale · 01-02-2015, 03:07 AM

All the Strange rotors look like they have 10 holes of two sizes. We are talking rotors - disk hats - right? Call them.

Dale

Dragsinger · 01-02-2015, 04:15 PM

The above post by Dale is correct. I doubled checked this morning, the rotors I have for the Super 10 have both bolt patterns.

I always find it surprising when you can look at an item yet never catch all the details. When you are looking for one specific fitment [it fit on my 5/8" studs] there was no reason to notice the second set of holes.

Dragsinger · 01-02-2015, 11:07 PM

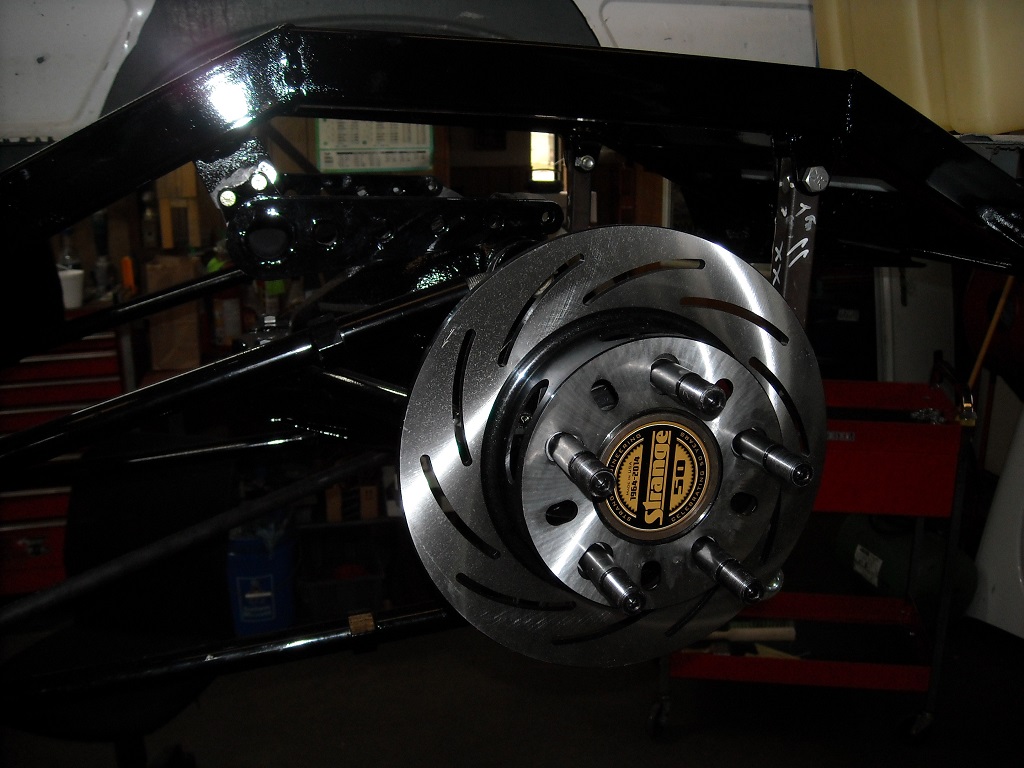

photo of Strange brake rotor with dual bolt pattern

ken robinson · 01-04-2015, 11:41 AM

Thanks guys. There picture looked like the dual rotor hat bolt pattern had 1/2 and 5/8 slotted holes machined on them for use with both sized studs and for height reductions .
