afco spring sliders

[dodgefever]

hello to all, I have a 2 part question for the mopar guys. are any of you guys running rear spring sliders on your cars, and can you give some input as to how they have helped the car? also, at what angle should they be installed, flat or nose down? this is for my 67 belvedere bracket car with superstock springs. not sure if you guys are allowed to use them in stock eliminator, but maybe have some experience with them. thank you in advance.

[Phillip marvetz]

I assume you are using ladder bars? They are not allowed in stock.

[dodgefever]

Originally Posted by Phillip marvetz

I assume you are using ladder bars? They are not allowed in stock.

no sir, this is just a bracket car. it has mopar superstock leaf springs and an adjustable pinion snubber. I may should have posted this question elsewhere, but really value the opinion of class racers. wasn't sure if they were allowed or not.

[Jim B]

Any spring slider or pivot type axle housing mount is used in conjuction with a ladder bar or link system that positively locates the axle without using the spring for that purpose. They cannot be used on a leaf spring only rear suspension. In your application you might be better served by asking about something like a Calvert traction bar setup.

[dodgefever]

Originally Posted by Jim B

Any spring slider or pivot type axle housing mount is used in conjuction with a ladder bar or link system that positively locates the axle without using the spring for that purpose. They cannot be used on a leaf spring only rear suspension. In your application you might be better served by asking about something like a Calvert traction bar setup.

I think I should have been more clear. you guys are talking about a floating housing which is used when ladder bars are installed on a leaf spring car. what I'm refering to are rear spring sliders that replace shackles. sorry for the confusion.

[Jeff Lee]

He is talking about the AFCO rear shackles. The rear leaf connects to the shackle with a roller bearing that slides fore / aft. The shackle assembly bolts to the rear frame and the spring can then move with the roller.
To answer the question, I believe you have full race weight and driver. Adjust so the slider is at mid-travel. I have not used so I can't offer any other advice.

[Mike Pearson]

They are not worth the work. I had similar ones on my car when I used leaf springs. I did not like them and put the shackles back on.

[Jeff Lee]

Mike,
What do you perceive as the problem? I'm considering them on my car.

[Mike Pearson]

Jeff

The side brackets with the slots that the springs were supposed to slide in were made from thin mild steel. The bolt through the spring was a 1/2 inch bolt with a thin wall mild steel sleeve that was supposed to roll on the bolt. The sleeve wore a groove in the slot and the slot wore a groove in the sleeve. So it actually was in a bind. I think the ones I had were either moroso or SRD. I guess if you made your own with a thicker bracket with the slot and made the slot wider where you could use an actual roller bearing it would be a good system. Maybe make the side bracket from some 1/2 inch aluminum plate with the slot milled in to match the diameter of a roller bearing. Then you would have something.

[Alex Denysenko]

We stock and sell a lot of them.
Many go out with Cal-Trac system orders.

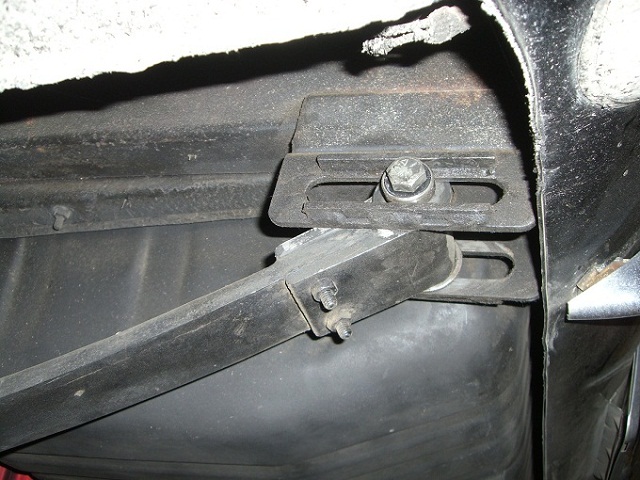

I love the way they work and even have them on my own car. Same AFCO's since 1998. See pics.

They do need to be lubricated 3-4 times a year.
We also stock some really cool billet aluminum shackles for racers who do not want to go through the extra work.
