BBC 049 oval port heads. question

camaroinmotion · 10-07-2019, 10:59 PM

Next year bracket car project .. planning to install them on a 496 CI... What valve be useful. 2.18/1.88. Or can I fit a 2.25/188... No limited to class.... compression ???....do I used a open chamber or closed chamber piston... Thanks all for help

camaroinmotion · 10-11-2019, 07:18 PM

Can get any help from 1 person?????

HP HUNTER · 10-11-2019, 07:47 PM

Quote:

Originally Posted by camaroinmotion

Can get any help from 1 person?????

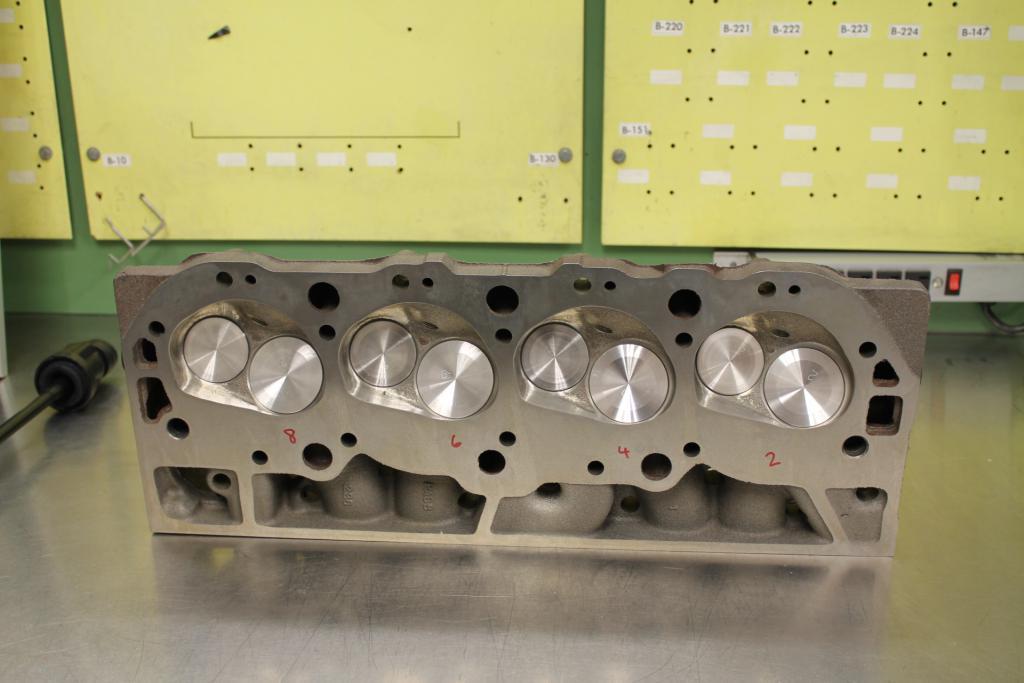

You will use a open chamber piston. The head will have to be clearanced back behind the exhaust valve to clear most pistons.
Example:

Tim H · 10-11-2019, 08:56 PM

Years ago I ran a 468ci with 049 heads w/ 2.19" & 1.88" valves,.680 lift solid roller cam, Speed Pro 7040PA pistons, Fel Pro .039 head gaskets and 850 cfm Holley, ran strong. Camaro that was approx 3000 lbs with me on board, 3500 rpm converter, solidly mid 10's. IIRC intake was Strip Dominator oval port.

10-07-2019, 10:59 PM	#1
camaroinmotion Member Join Date: Feb 2019 Posts: 130 Likes: 2 Liked 6 Times in 3 Posts	BBC 049 oval port heads. question Next year bracket car project .. planning to install them on a 496 CI... What valve be useful. 2.18/1.88. Or can I fit a 2.25/188... No limited to class.... compression ???....do I used a open chamber or closed chamber piston... Thanks all for help

10-11-2019, 07:18 PM	#2
camaroinmotion Member Join Date: Feb 2019 Posts: 130 Likes: 2 Liked 6 Times in 3 Posts	Re: BBC 049 oval port heads. question Can get any help from 1 person?????

10-11-2019, 08:56 PM	#4
Tim H VIP Member Join Date: Jan 2007 Posts: 1,040 Likes: 1,064 Liked 481 Times in 158 Posts	Re: BBC 049 oval port heads. question Years ago I ran a 468ci with 049 heads w/ 2.19" & 1.88" valves,.680 lift solid roller cam, Speed Pro 7040PA pistons, Fel Pro .039 head gaskets and 850 cfm Holley, ran strong. Camaro that was approx 3000 lbs with me on board, 3500 rpm converter, solidly mid 10's. IIRC intake was Strip Dominator oval port.
