Default Do these numbers look right?

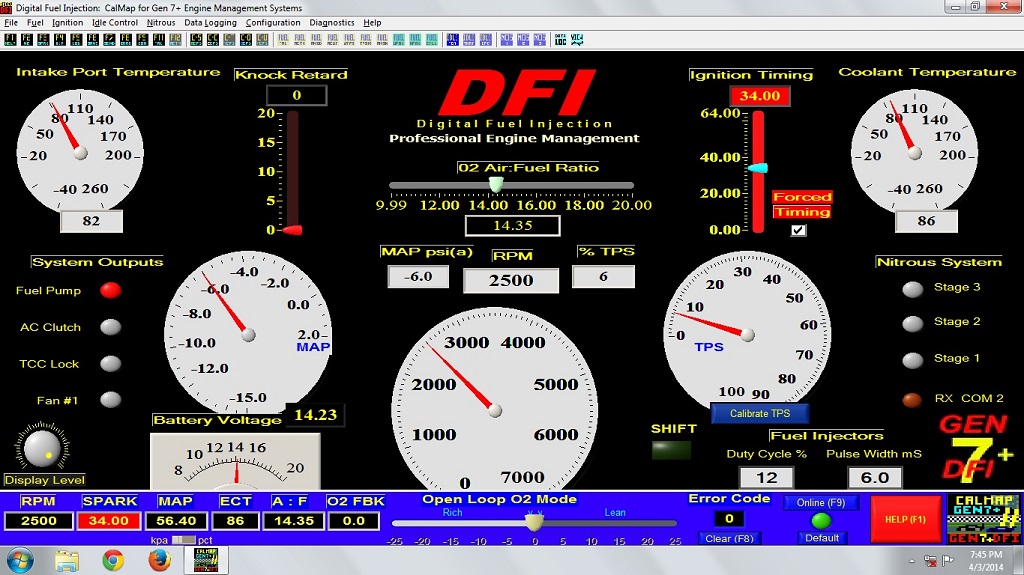

One screenshot is car idling, the other is at 2500 rpms. Still running rich as hell. I am out of things to check and not familiar enough with DFI to change anything internal.
Attached Thumbnails
Click image for larger version

Name:	Idle.jpg
Views:	1375
Size:	220.2 KB
ID:	23236   Click image for larger version

Name:	2500rpm.jpg
Views:	1328
Size:	221.3 KB
ID:	23237
__________________
'65 Mustang SS/L & L/SA
DriverInterviews.com | App.DragInsights.com
Bobby Fazio is offline   Reply With Quote
Old 04-03-2014, 09:50 PM   #2
Alan Roehrich
Veteran Member

Alan Roehrich's Avatar

Join Date: May 2006
Location: Murfreesboro TN
Posts: 5,105
Likes: 1,564
Liked 1,789 Times in 408 Posts
Default Re: Do these numbers look right?

Bobby, according to that, your air/fuel ratio is over 14:1. That's not rich, that's lean.
__________________
Alan Roehrich
212A G/S
Alan Roehrich is offline   Reply With Quote
Old 04-03-2014, 10:22 PM   #3
art leong
VIP Member

Join Date: Dec 2001
Location: Richmond Hill, Georgia
Posts: 2,003
Likes: 0
Liked 1 Time in 1 Post
Default Re: Do these numbers look right?

Where is the O2 sensor located? If it's in the collector, how far from the end?
I had all kinds of problems trying to tune for low rpms. Till I put in an upstream O2 sensor.
__________________
Art Leong 2095 SS
art leong is offline   Reply With Quote
Old 04-03-2014, 10:33 PM   #4
Chad Rhodes
VIP Member

Join Date: Jan 2005
Location: Where the Green Grass Grows, AL
Posts: 2,375
Likes: 0
Liked 3 Times in 3 Posts
Default Re: Do these numbers look right?

Quote:
Originally Posted by art leong View Post
Where is the O2 sensor located? If it's in the collector, how far from the end?
I had all kinds of problems trying to tune for low rpms. Till I put in an upstream O2 sensor.
Art has a point. If your wideband is in the collector, try sliding about a 2ft extension on that collector to tune low rpm stuff. The reversion is killing your accuracy, that won't be a problem at WOT
__________________
Chad Rhodes 2113 I/SA
Chad Rhodes is offline   Reply With Quote
Old 04-03-2014, 11:21 PM   #5
Bobby Fazio
VIP Member

Bobby Fazio's Avatar

Join Date: Nov 2009
Location: Egg Harbor Township, NJ
Posts: 1,468
Likes: 1,446
Liked 4,365 Times in 501 Posts
Default Re: Do these numbers look right?

I do have it in the collector but I'm running in open loop so there is no correction coming from the o2 sensor. With that said, the air fuel ratio isn't fluctuating at all which seems odd.
__________________
'65 Mustang SS/L & L/SA
DriverInterviews.com | App.DragInsights.com
Bobby Fazio is offline   Reply With Quote
Old 04-04-2014, 03:24 AM   #6
Dave Noll
Senior Member

Dave Noll's Avatar

Join Date: Nov 2007
Location: Div. 6, Eastern, WA
Posts: 709
Likes: 2,666
Liked 238 Times in 111 Posts
Default Re: Do these numbers look right?

Bobby,
I was a driveability mechanic for a number of years & my stocker is pre-computer. That said, I'm not familiar with this software. I don't know if it disregards O2 input in open loop but beside's the 14.35 AFR in both graph's the "O2 FBK" is 0 as well. I don't know how cold PA is right now but to get the coolant to 80, that 02 should read something. What I really don't like is the MAP is reading almost atmospheric @ 1200. 7.5ms pulse width is really fat for idle, it does go to 6ms, still fat, revved up but the MAP still looks low.. Vacuum line problem, dead MAP, ........ do you have spare parts that you can A.B.A. test with ? Can you also backprobe the 02 connector with a DVOM to get an actual reading from it ? Does this use the stock MAP sensor ?
__________________
Dave Noll, EF/S ,?/SA 6526
Dave Noll is offline   Reply With Quote
Old 04-04-2014, 09:05 AM   #7
Ed Wright
Veteran Member

Ed Wright's Avatar

Join Date: Mar 2005
Location: Sand Springs, OK
Posts: 8,132
Likes: 896
Liked 390 Times in 170 Posts
Default Re: Do these numbers look right?

As Chad said, put an extension on the collectors for idle & part throttle. Unless you have had eight wide bands in the primary tubes to verify all eight cylinders are equal (they never are unless it has been put into sequential mode for cylinder-to-cylinder tuning) putting one upstream may or may not be accurate. Ten percent variation between cylinders is not unusual. At WOT, using one upstream, your indicated 13-1 a/f could be 12-1 or 14-1 on most other cylinders. EGT is not an accurate indicator either. Things other that air/fuel effect EGTs. Most agree that the average you see in the collector is best indicator if individual cylinder-to -cylinder tuning has not been done. Don't tie yourself into some magic number, find the air/fuel ratio makes your car run the best MPH numbers. Don't worry about what somebody else's car likes. Cars I have worked with like somewhere between 12.5-1 and 13.25-1 @ WOT. Mine likes about 14-1 idling & on the return road, with extensions on the headers, it's always in open loop.
Me tuning extensions are 3' long, with a 45 deg bend in the middle.
Your results might vary. LOL
__________________
Ed Wright 4156 SS/JA

Last edited by Ed Wright; 04-04-2014 at 09:07 AM. Reason: Still can't type...
Ed Wright is offline   Reply With Quote
Old 04-04-2014, 09:35 AM   #8
Signman
Senior Member

Join Date: Oct 2003
Location: Lower Slower Delaware
Posts: 535
Likes: 22
Liked 269 Times in 99 Posts
Default Re: Do these numbers look right?

When my O2 sensor went bad it made the car run really rich, hey don't like to be knocked around.
Try a new sensor along with the other good advise above.
