Old 01-29-2017, 10:23 AM   #1
Ernie Neal
Senior Member

Ernie Neal's Avatar

Join Date: Feb 2009
Location: Columbus, Indiana
Posts: 533
Likes: 173
Liked 328 Times in 80 Posts

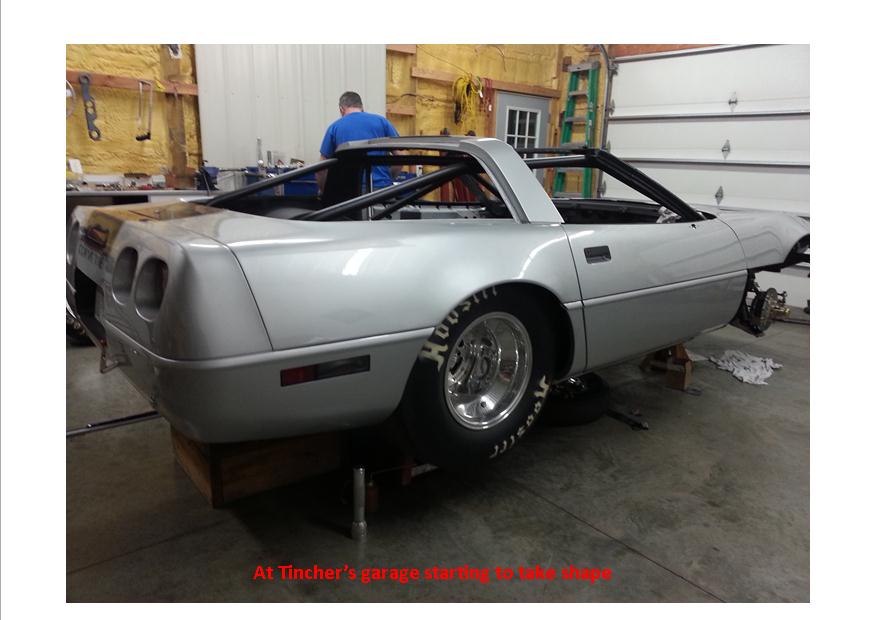

Default Re: C4 Corvette build for Superstock I-J-K

some more photos of the Mark Williams brakes I used on my lowered spindle position. The kit is for an 82-92 Camaro, less mounting brackets. AJE had these spindle stubs in stock. And the plates are now available at Cole Technologies, ask for David. The finished product has a backer plate of 3/16" on the through bolts.

couple of pics of the heater box cover

I drew the holes for the plug wires to go through the motorplate with enough resistance pushing them to retain them in place. The waterjet cutting was done by my good friend David Tincher. I did 7 designs on this, but we decided to go with this one.

Brake line tubing to the passenger side protected from the damper, plus some of the other little jump tubes.
Attached Thumbnails
Click image for larger version

Name:	vette__118.jpg
Views:	933
Size:	107.2 KB
ID:	38116   Click image for larger version

Name:	vette__119.jpg
Views:	953
Size:	101.3 KB
ID:	38117   Click image for larger version

Name:	vette__120.jpg
Views:	916
Size:	62.8 KB
ID:	38118

Click image for larger version

Name:	vette__121.jpg
Views:	922
Size:	73.3 KB
ID:	38119   Click image for larger version

Name:	vette__122.jpg
Views:	1010
Size:	84.9 KB
ID:	38120   Click image for larger version

Name:	vette__123.jpg
Views:	949
Size:	87.9 KB
ID:	38121

Click image for larger version

Name:	vette__124.jpg
Views:	907
Size:	60.0 KB
ID:	38122   Click image for larger version

Name:	vette__125.jpg
Views:	913
Size:	85.0 KB
ID:	38123   Click image for larger version

Name:	vette__126.jpg
Views:	924
Size:	62.6 KB
ID:	38124

Ernie Neal is offline   Reply With Quote
Old 01-29-2017, 02:30 PM   #2
jims5600
Member

Join Date: Oct 2011
Posts: 125
Likes: 47
Liked 21 Times in 9 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Ernie you are doing a awesome job! I have had 4 C4 street cars and have
a soft spot in my heart for those. Really like the fact you made up a spindle.
Well done.
It is great that you have all these photos of your build. Not just for us to
look over and drool! Will be nice to show people when the time comes to
sell and move on.
Best of luck on this build
Jimmy
jims5600 is offline   Reply With Quote
Old 01-29-2017, 08:04 PM   #3
Ernie Neal
Senior Member

Ernie Neal's Avatar

Join Date: Feb 2009
Location: Columbus, Indiana
Posts: 533
Likes: 173
Liked 328 Times in 80 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Quote:
Originally Posted by jims5600 View Post
Ernie you are doing a awesome job! I have had 4 C4 street cars and have
a soft spot in my heart for those. Really like the fact you made up a spindle.
Well done.
It is great that you have all these photos of your build. Not just for us to
look over and drool! Will be nice to show people when the time comes to
sell and move on.
Best of luck on this build
Jimmy
thanks Jimmy, stay tuned through the completion of the build.

Ernie Neal
SS354
Ernie Neal is offline   Reply With Quote
Old 01-30-2017, 11:01 AM   #4
Ernie Neal
Senior Member

Ernie Neal's Avatar

Join Date: Feb 2009
Location: Columbus, Indiana
Posts: 533
Likes: 173
Liked 328 Times in 80 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Top bar of wheelie bar assembly (yes it's a single)
Transmission in place along with Browell housing
Developed my own offset distributor mount (can make you one!)
jesel or msd styles
next is the transmission mount
the modified ART shock mount
rear end housing painted up
driveshaft loop
and under shot of tubs
Attached Thumbnails
Click image for larger version

Name:	vette__127.jpg
Views:	759
Size:	70.2 KB
ID:	38129   Click image for larger version

Name:	vette__128.jpg
Views:	767
Size:	80.2 KB
ID:	38130   Click image for larger version

Name:	vette__129.jpg
Views:	672
Size:	57.8 KB
ID:	38131

Click image for larger version

Name:	vette__130.jpg
Views:	668
Size:	74.6 KB
ID:	38132   Click image for larger version

Name:	vette__131.jpg
Views:	648
Size:	55.2 KB
ID:	38133   Click image for larger version

Name:	vette__132.jpg
Views:	666
Size:	57.6 KB
ID:	38134

Click image for larger version

Name:	vette__133.jpg
Views:	680
Size:	57.1 KB
ID:	38135   Click image for larger version

Name:	vette__134.jpg
Views:	655
Size:	48.1 KB
ID:	38136   Click image for larger version

Name:	vette__135.jpg
Views:	703
Size:	55.7 KB
ID:	38137

Ernie Neal is offline   Reply With Quote
Old 01-31-2017, 07:15 AM   #5
Ernie Neal
Senior Member

Ernie Neal's Avatar

Join Date: Feb 2009
Location: Columbus, Indiana
Posts: 533
Likes: 173
Liked 328 Times in 80 Posts
Default Re: C4 Corvette build for Superstock I-J-K

motorplate after polishing
wheelie bar partially chromed
headers after I polished them
volt meter under gas door
single wheelie bar
clutch
inside after trim blacked
front spindle shot
Attached Thumbnails
Click image for larger version

Name:	vette__136.jpg
Views:	670
Size:	111.0 KB
ID:	38141   Click image for larger version

Name:	vette__137.jpg
Views:	666
Size:	61.8 KB
ID:	38142   Click image for larger version

Name:	vette__138.jpg
Views:	772
Size:	83.6 KB
ID:	38143

Click image for larger version

Name:	vette__139.jpg
Views:	698
Size:	48.8 KB
ID:	38144   Click image for larger version

Name:	vette__140.jpg
Views:	729
Size:	60.4 KB
ID:	38145   Click image for larger version

Name:	vette__141.jpg
Views:	794
Size:	57.9 KB
ID:	38146

Click image for larger version

Name:	vette__142.jpg
Views:	856
Size:	67.1 KB
ID:	38147   Click image for larger version

Name:	vette__143.jpg
Views:	747
Size:	53.4 KB
ID:	38148   Click image for larger version

Name:	vette__144.jpg
Views:	727
Size:	63.2 KB
ID:	38149

Ernie Neal is offline   Reply With Quote
Old 01-31-2017, 07:59 AM   #6
Robert Simpson
Senior Member

Join Date: Aug 2004
Location: Jacksonville, Florida
Posts: 808
Likes: 7
Liked 20 Times in 12 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Ernie, great build I like the layout. Would you happen to have any pictures of the clutch linkage installed? I am thinking that you are using a bell crank under the floor pan or under the dash dropping down to the clutch fork?

Thanks
Robert Simpson is offline   Reply With Quote
Old 01-31-2017, 10:36 AM   #7
Ernie Neal
Senior Member

Ernie Neal's Avatar

Join Date: Feb 2009
Location: Columbus, Indiana
Posts: 533
Likes: 173
Liked 328 Times in 80 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Quote:
Originally Posted by Robert Simpson View Post
Ernie, great build I like the layout. Would you happen to have any pictures of the clutch linkage installed? I am thinking that you are using a bell crank under the floor pan or under the dash dropping down to the clutch fork?

Thanks
Robert,
my clutch linkage is inside the car similar to what old 55-57 Chevys were. I had 1 shot of one of the ends I made to hold the cross shaft. I used bearings on each end. These are welded to the dash bar. The rod drops through the floor just past the accelerator pedal.

The other picture is all the pieces that comprise the linkage before welding.

Ernie
Attached Thumbnails
Click image for larger version

Name:	clutchRodEnd.jpg
Views:	525
Size:	276.4 KB
ID:	38155   Click image for larger version

Name:	clutPedlRod.jpg
Views:	506
Size:	271.9 KB
ID:	38156
Ernie Neal is offline   Reply With Quote
Old 02-21-2017, 12:44 AM   #8
Ed Carpenter
Live Reporter

Ed Carpenter's Avatar

Join Date: May 2006
Location: Dripping Springs, Tx
Posts: 2,710
Likes: 187
Liked 520 Times in 132 Posts
Default Re: C4 Corvette build for Superstock I-J-K

Quote:
Originally Posted by Ernie Neal View Post
Top bar of wheelie bar assembly (yes it's a single)
Transmission in place along with Browell housing
Developed my own offset distributor mount (can make you one!)
jesel or msd styles
next is the transmission mount
the modified ART shock mount
rear end housing painted up
driveshaft loop
and under shot of tubs
Great job Ernie. Best part of this car is there isn't a slushbox in it.....
__________________
Ed Carpenter
2005 Chevy Cobalt A/SM
Race Engine Development
Ed Carpenter is offline   Reply With Quote
