Woodfin's SS GT/TB construction series

duke66 · 12-07-2018, 05:55 PM

Been a while since we talked and we did finish my son's truck. With a 385, He has a best of 6.36,@ 108. 59% on the front.
Just wonder what your percentages are and the settings on the 4 link?

Dragsinger · 01-06-2019, 10:55 PM

As it works out, I have the truck at my shop for some minor work before the season begins.

I do not know the weight bias but do have notes about the four-link setting and will post that soon.

duke66 · 01-07-2019, 12:37 PM

Thanks, I'm an old Modified racer and am always thinking about tuning. We are going to 5.14's from the 4.86's and 31 or 32" tires and taking the 29.5's off. Trying for a little more consistency.

jbt352 · 01-07-2019, 02:48 PM

Larry,
I will be interested as well.
We messaged back and fourth a few months ago.
We are doing a short bed S10 with a 6.0L for bracket racing
and are doing the final assembly on the rear end.
Thanks again.

Dragsinger · 01-07-2019, 09:54 PM

The Super 10 is built with a Chassis Engineering four-link kit #3513. You can go to the Chassis Engineering website, under "instructions" the kit is installed per those instructions at the ride height/axle height per the instructions.

The instructions also include a chart showing instant center for all possible locations. Tomorrow I will post a photo showing were the Super 10 links are located.

Note; it has a 32 x 14 tire.

jbt352 · 01-11-2019, 02:11 PM

Larry,
So you feel with the correct bar placement we may not need to run any weight?
I have been told that 4 links work better with higher hp cars?
Do you see us having problems with only being in the 500hp range.
We will have the room for up to a 14X32 tire if need.
I know there are a lot of people going faster then we will be with leaf springs and cal tracs and smaller tires.

Dragsinger · 01-11-2019, 04:23 PM

352,

you will need to experiment. There is to reason to carry extra weight if it is not needed.

And about a lower powered four-link. I thank it is always OK to have a four-link no matter the power level.

With your reference to Cal-Tracks, the geometry of that is very much like a four-link. The spring front attachment being the upper bar point and the Cal-Track the lower bar point where those two lines would cross.

duke66 · 01-12-2019, 01:25 AM

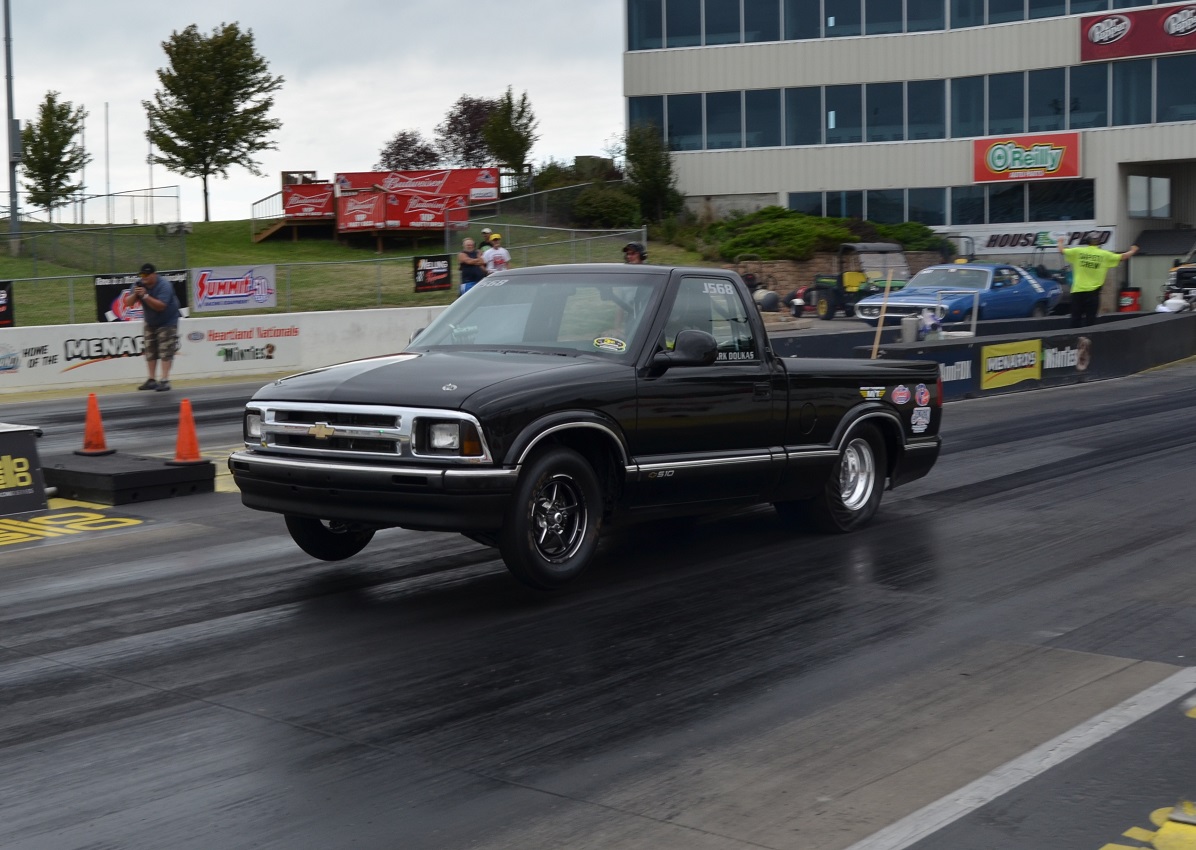

My son's 385 is only around 550HP. He has a best of 1.36, 60 foot and 6.36, 1/8 mile. He ran 10.22/131 in Topeka. His truck is 2850 lbs with him in it. That's with 4.86 rear and 13.5 x 29.5 tires.
The truck is 59% front and 41% rear. Only 5 gallon fuel cell and12 volt red top battery in the back of the bed.
We are switching to 5.14's and 13.5/31 tires. Our local track is usually a little iffy,so just putting a little more rubber under it.

Click image for larger version

Name: s10crop1.jpg
Views: 505
Size: 314.9 KB
ID: 48297

Hacksaw · 01-10-2019, 09:16 AM

Quote:

Originally Posted by duke66

Been a while since we talked and we did finish my son's truck. With a 385, He has a best of 6.36,@ 108. 59% on the front.
Just wonder what your percentages are and the settings on the 4 link?

I built a SS/GT truck and the best I could get was 45% on the rear.

jbt352 · 01-10-2019, 09:23 AM

Hacksaw, how much weight was added to the rear of the truck?
I have seen some set up for bracket racing with a couple hundred pounds added. I just hate the thought of adding weight to a race car.
