Brake Pressure Gauge Installation Question

Rob Petrie E395 · 09-02-2010, 07:42 PM

I got a Tee from autometer with mine. one part of the tee threads onto the gauge,one part of the tee has a bleeder screw on it and the third is made to attach a brake line to it.
Hope this helps
Rob

Goto Autometer site and look up gauge 4426 and click on the instructions and it shows a nice picture of the tee.

chevy 68 · 09-02-2010, 08:59 PM

I assume you would just tee in the line, but how do I bleed the air from the line to the brake pressure gauge? Any help would be appreciated. Thanks.

Whalen3186 · 09-03-2010, 11:30 PM

I bled mine right at the back of the gauge.

Mike Delahanty · 09-04-2010, 08:34 PM

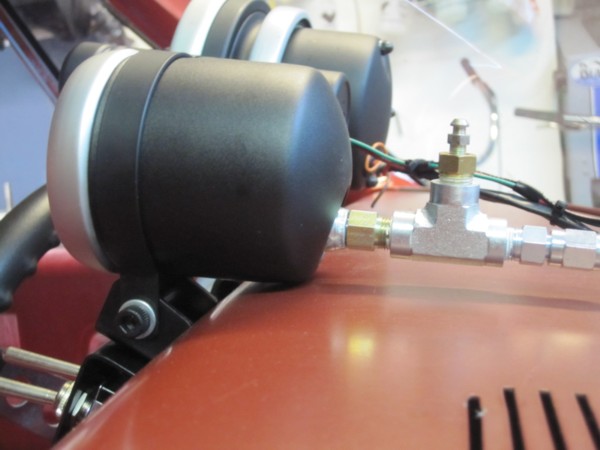

See the attached photo. I used a vacuum bleeder to help bleed the line up to that point at the guage. Less messy too.

09-02-2010, 07:42 PM	#1
Rob Petrie E395 VIP Member Join Date: Dec 2007 Location: Woodlawn IL Posts: 1,093 Likes: 162 Liked 220 Times in 79 Posts	Re: Brake Pressure Gauge Installation Question I got a Tee from autometer with mine. one part of the tee threads onto the gauge,one part of the tee has a bleeder screw on it and the third is made to attach a brake line to it. Hope this helps Rob Goto Autometer site and look up gauge 4426 and click on the instructions and it shows a nice picture of the tee. Last edited by Rob Petrie E395; 09-02-2010 at 09:27 PM. Reason: added info about tee fitting

09-02-2010, 08:59 PM	#2
chevy 68 Junior Member Join Date: Aug 2009 Posts: 9 Likes: 0 Liked 0 Times in 0 Posts	Brake Pressure Gauge Installation Question I assume you would just tee in the line, but how do I bleed the air from the line to the brake pressure gauge? Any help would be appreciated. Thanks.

09-03-2010, 11:30 PM	#3
Whalen3186 Member Join Date: May 2008 Location: Illinois Posts: 239 Likes: 19 Liked 108 Times in 30 Posts	Re: Brake Pressure Gauge Installation Question I bled mine right at the back of the gauge.

09-04-2010, 08:34 PM	#4
Mike Delahanty VIP Member Join Date: Dec 2004 Posts: 1,182 Likes: 0 Liked 233 Times in 39 Posts	Re: Brake Pressure Gauge Installation Question See the attached photo. I used a vacuum bleeder to help bleed the line up to that point at the guage. Less messy too. Attached Thumbnails
