Hydraulic Thow out bearing

[Bob Mulry]

Originally Posted by Sean Marconette

You may want to look at the rule book, as I am pretty sure it states no hydraulic or electric. Most convert to linkage as it's easier to get the air gap set correctly and for consistency and another place to adjust for RT. The electric statement prevents stick racers from using a magnet for releasing the clutch pedal in both stock and SS.

Sean

The 2017 rule book only speaks to air or hydraulic shifters and not clutch linkage...

Just sayin'

[stock1080]

thank you, I have a 85 z28 that came with a hydraulic unit. I do have a manual linkage now. I was thinking in a 99 Camaro you would have to have a z-bar made. If any gen 4 stick shift guys could let me know who made it for them. thanks, jeff

[JHeath]

Tom Russell @ Russell Performance has probably made z-bar style clutch linkage.

[stock1080]

outstanding, thanks to all.

[Tom Goldman]

I converted Eric Merryfield's Drag Pak to a stick and did a mechanical set up .
We didn't feel it would be possible to keep the hydraulic unit consistent on reaction times ,plus you have little control over the air gap.
With a Z bar ,you can create many different ratios to change reaction time .

[Todd Gross]

Originally Posted by Tom Goldman

I converted Eric Merryfield's Drag Pak to a stick and did a mechanical set up .
We didn't feel it would be possible to keep the hydraulic unit consistent on reaction times ,plus you have little control over the air gap.
With a Z bar ,you can create many different ratios to change reaction time .

Hey Tom,
Would you consider selling me a Z-Bar for my Drag Pak? That would save me a bunch of time in design work.

[Stick cars rule]

Originally Posted by JMan

Hey Tom,
Would you consider selling me a Z-Bar for my Drag Pak? That would save me a bunch of time in design work.

Hey todd.my dp is currently having the clutch linkage fabricated by Andre Mailloux.your more than welcome to come and look at it for ideas.i live not to far from you.every thing Andre builds is unbelievable.

[Tom Goldman]

Originally Posted by JMan

Hey Tom,
Would you consider selling me a Z-Bar for my Drag Pak? That would save me a bunch of time in design work.

Sorry for not responding sooner ,got a lot going on.
I really didn't make any final patterns of the clutch setup since it was refined over a few weeks of building.

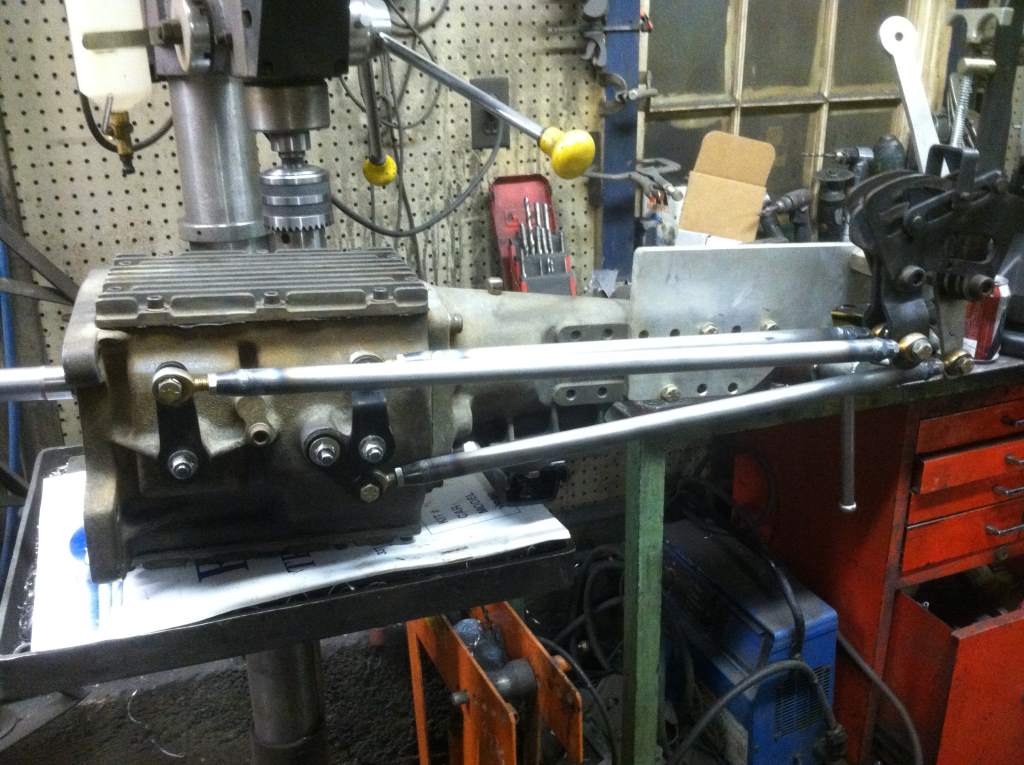

Here are a few pictures to give you an idea of how I did Eric's DragPak.
The sleeve is bushed and is welded thru the frame rail and the supported at the bellhousing .
I'm looking for a better picture of the bellhousing end .
You will have to fabricate a custom shifter mount and longer linkages.
The left side of the tunnel will also need work to clear the linkage .
