Touch Screen Switch Panel

Altronics · 10-29-2013, 02:03 PM

NEW! Integrated Switch Panel for Dataquest System.

[ame="http://www.youtube.com/watch?v=zVVEfZ98W8E"]Click here for Switch Panel Demo Video![/ame]

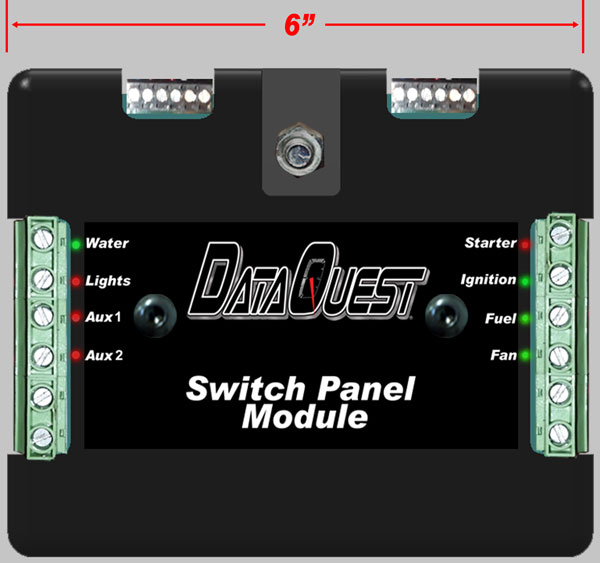

Controls all vehicle functions through Touch Screen and Solid State Switch Module.

Each Switch can be time delayed to automatically turn on after the Start button is pressed so you can start cranking engine easily before the ignition is turned on. Then bring in the fuel to allow for easier starting with less risk of flooding. Press one button to start car, no more flipping switches!

Each switch can be Limit programmed off any other channel in the system (Example- Water pump will turn on when the Engine Temperature is above 120 degrees)

Each switch can handle a 30 amp max load and can be programmable fused at any level (0-30amps). (No more replacing blown fuses)

Each switches current draw can be data recorded. (Example - Amperage draw on your Fuel Pump can be viewed over your entire run).

Switches also feature a Soft Start option to eliminate in-rush current when load is first turned on.
Module can be connected anywhere along the systems CAN network cable.

Be sure to click on our banner at the top of the page for special DRR member discounts!
