Self Adj To Manual Adj Drums

Dave Gantz · 04-09-2020, 10:06 PM

I have it back together.

The manual star adjusters were a bit too long, but the manual adjusting springs work. I used the original auto adjusting star wheel with them. The manual springs keep the adjusters from turning on their own.

I found a return spring in the kit that replaced the short return spring that was used with the auto adjust set up.

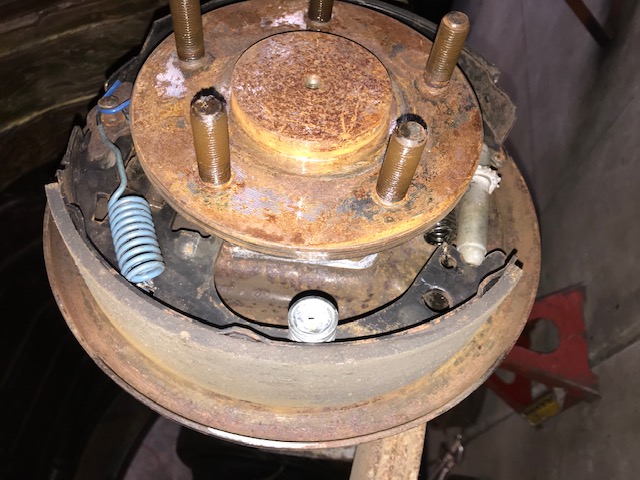

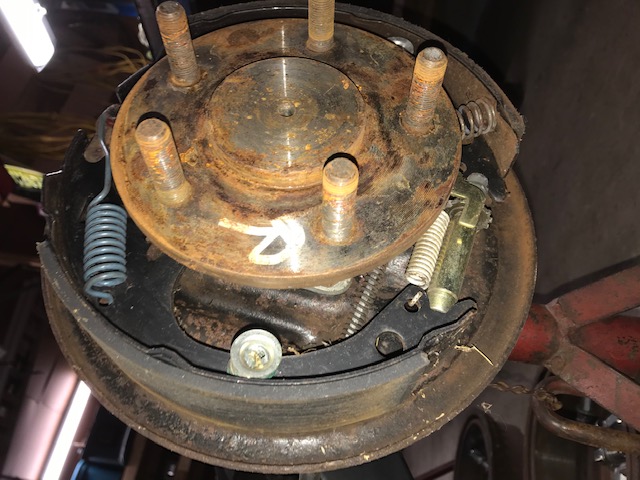

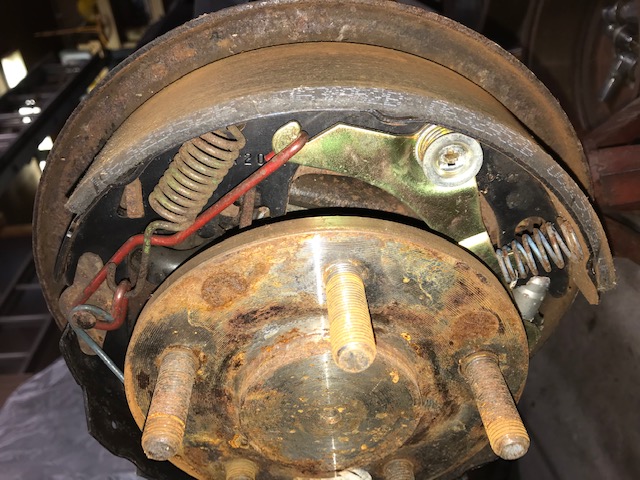

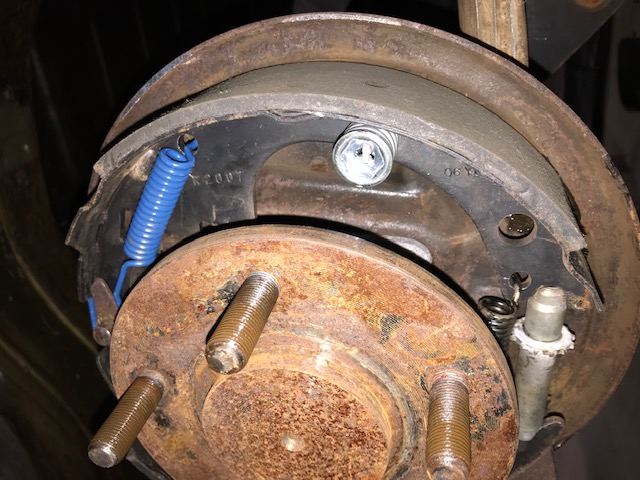

There are two before and two after pictures. The after also shows the E- brake hardware removed.

They all got turned 90* somehow.

04-09-2020, 10:06 PM	#1
Dave Gantz Senior Member Join Date: Nov 2005 Location: Verrry South Jersey Posts: 537 Likes: 134 Liked 251 Times in 125 Posts	Re: Self Adj To Manual Adj Drums I have it back together. The manual star adjusters were a bit too long, but the manual adjusting springs work. I used the original auto adjusting star wheel with them. The manual springs keep the adjusters from turning on their own. I found a return spring in the kit that replaced the short return spring that was used with the auto adjust set up. There are two before and two after pictures. The after also shows the E- brake hardware removed. They all got turned 90* somehow. Attached Thumbnails Last edited by Dave Gantz; 04-09-2020 at 10:14 PM.
