Old 11-14-2024, 11:31 AM   #5
Stan Weiss
Senior Member

Stan Weiss's Avatar

Join Date: Apr 2020
Location: Phila, PA
Posts: 794
Likes: 0
Liked 734 Times in 385 Posts
Default Re: Eric Weingartner LS Cam Challenge

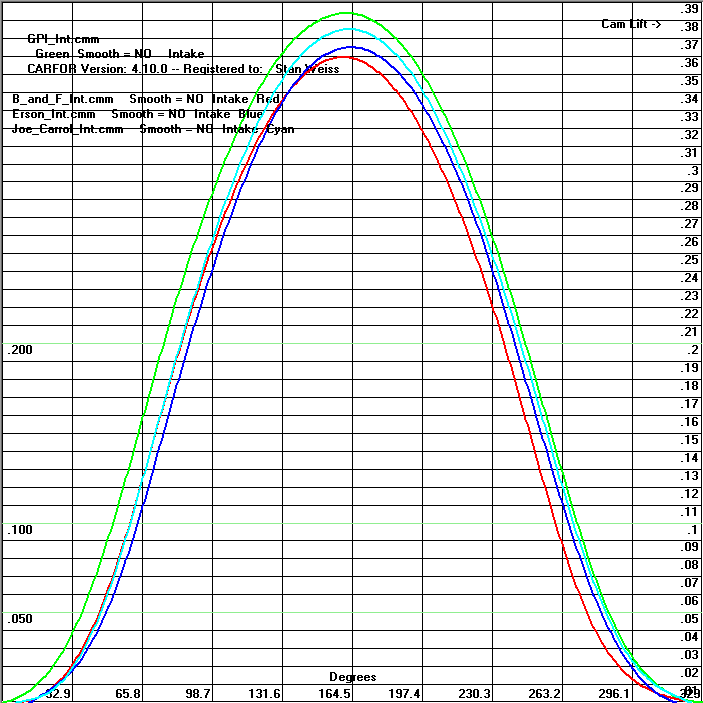

This graph shows the general shape of 4 Intake lobes, which were generated from their Cam DR reports. The lobes are basically centered so it doesn't reflect where valve events are relative to the other cams shown.

Stan
Attached Thumbnails
Click image for larger version Name: Intake_lobes_1.gif Views: 252 Size: 21.8 KB ID: 71667
