Testing Line Pressure TH-350
Where is the port to test line pressure on a TH-350? With my car in low gear it will move forward 15 ft., then when I stop it won't move again. The engine just revs but the car doesn't move. Went through the shifter adjustment and the fluid doesn't smell or look burnt. Thanks.
|
|
|
|
11-22-2017, 11:19 AM
|
#2 |
|
Member
Join Date: May 2009
Posts: 160
Likes: 0
Liked 15 Times in 11 Posts
|
Re: Testing Line Pressure TH-350
Right side of case (passenger side), near tail housing; there is a hex head 1/4 npt plug.
|
|
|
|
|
11-22-2017, 12:00 PM
|
#3 | |
|
Veteran Member
Join Date: Mar 2002
Location: Miles From Nowhere
Posts: 7,799
Likes: 2,889
Liked 5,093 Times in 1,941 Posts
|
Re: Testing Line Pressure TH-350
Quote:
__________________
"We are lucky we don't get as much Government as we pay for." Will Rogers |
|
|
|
|
|
11-22-2017, 12:26 PM
|
#4 |
|
Member
Join Date: Apr 2005
Location: san antonio tx
Posts: 259
Likes: 5
Liked 28 Times in 15 Posts
|
Re: Testing Line Pressure TH-350
Between the modulator and the servo?
|
|
|
|
|
11-22-2017, 12:56 PM
|
#5 | |
|
Veteran Member
Join Date: Mar 2002
Location: Miles From Nowhere
Posts: 7,799
Likes: 2,889
Liked 5,093 Times in 1,941 Posts
|
Re: Testing Line Pressure TH-350
Quote:
Rear port is main line pressure. You will see pressure here in all gears for most valve body configurations. Some race-only valve bodies may not have pressure at this port or the others Middle port is 2nd gear pressure Front port is third gear pressure
__________________
"We are lucky we don't get as much Government as we pay for." Will Rogers |
|
|
|
|
|
11-22-2017, 03:13 PM
|
#6 |
|
Member
Join Date: May 2014
Location: E TN
Posts: 470
Likes: 16
Liked 133 Times in 76 Posts
|
Re: Testing Line Pressure TH-350
http://www.crankshaftcoalition.com/w...0_rebuild_tech
Scroll down for pic of the ports. |
|
|
|
|
11-22-2017, 05:24 PM
|
#7 |
|
Junior Member
Join Date: Feb 2011
Location: Ontario, Canada
Posts: 30
Likes: 198
Liked 2 Times in 1 Post
|
Re: Testing Line Pressure TH-350

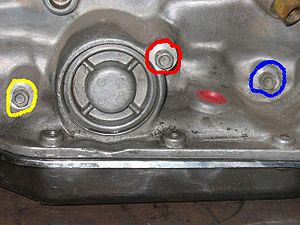

Right side of TH350 case. Pressure ports are circled.
 TH350 pressure ports circled
